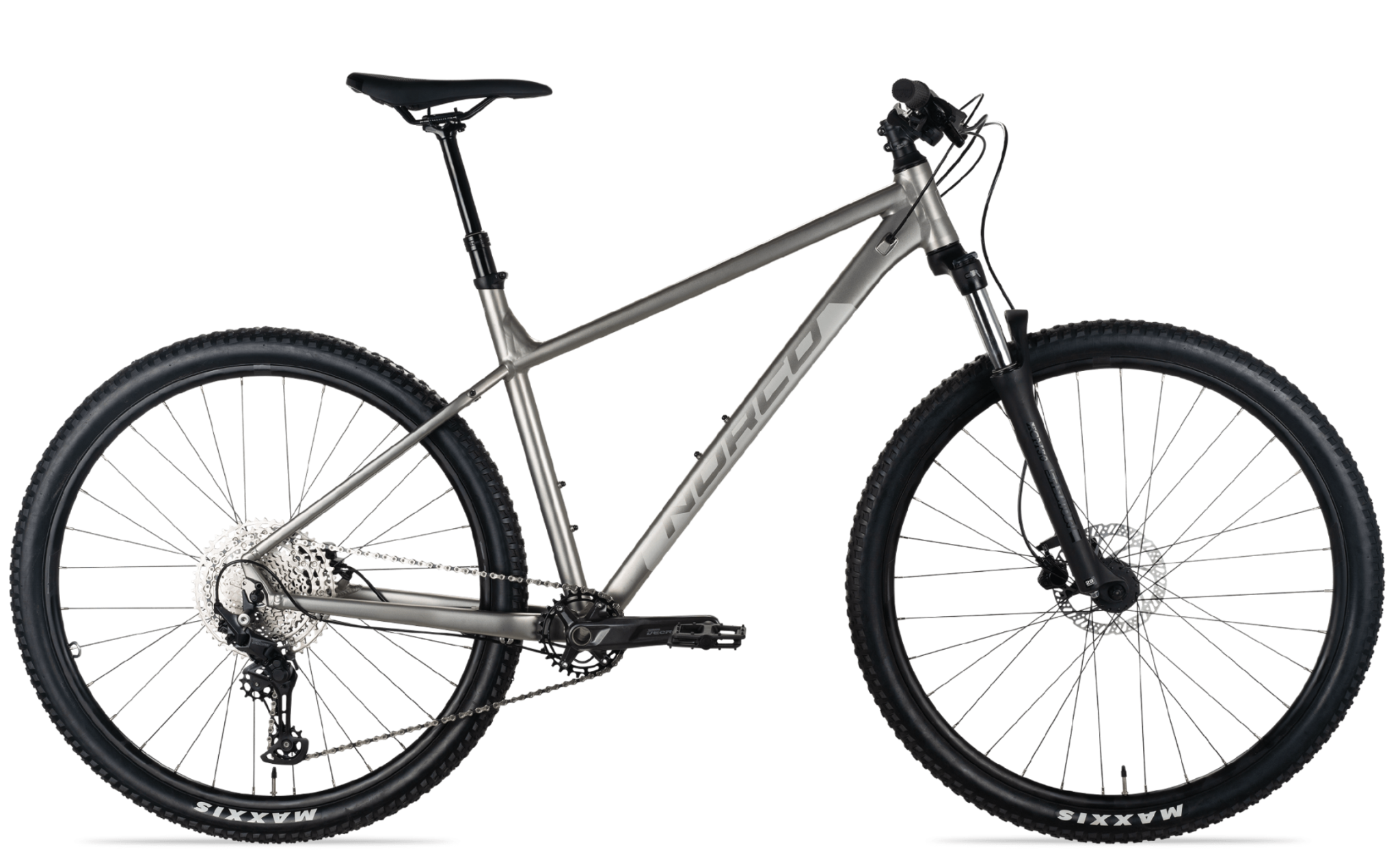

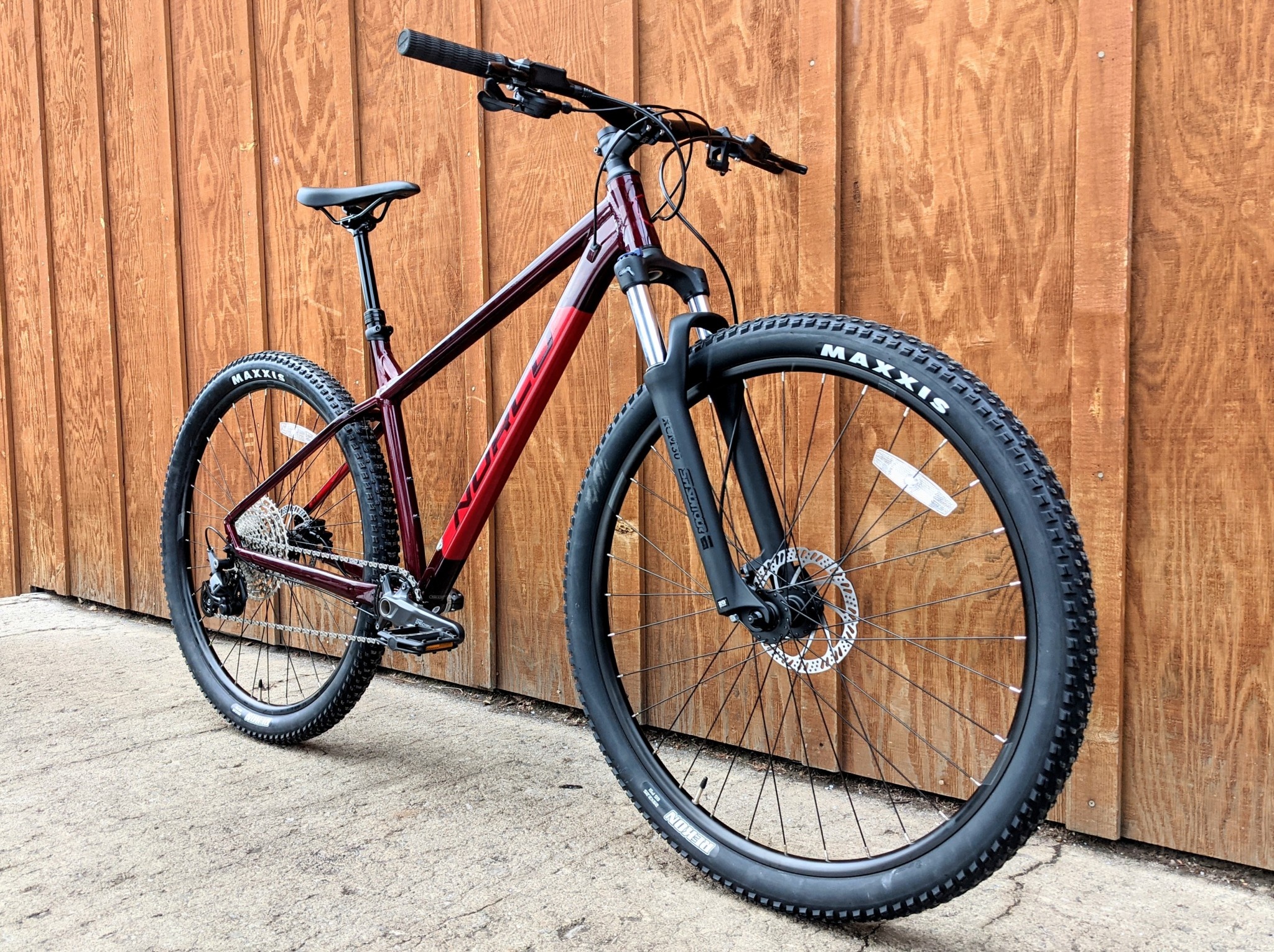

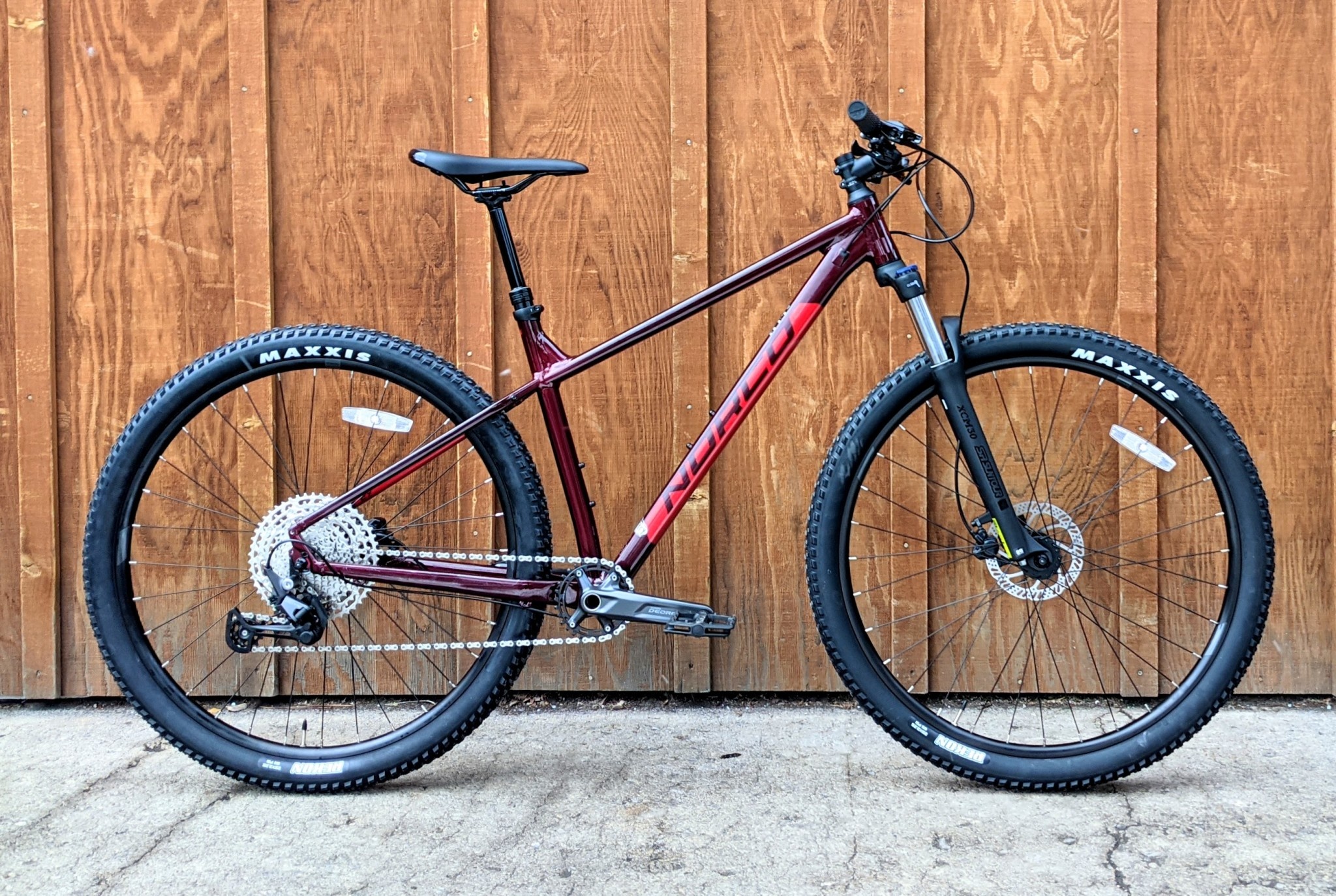

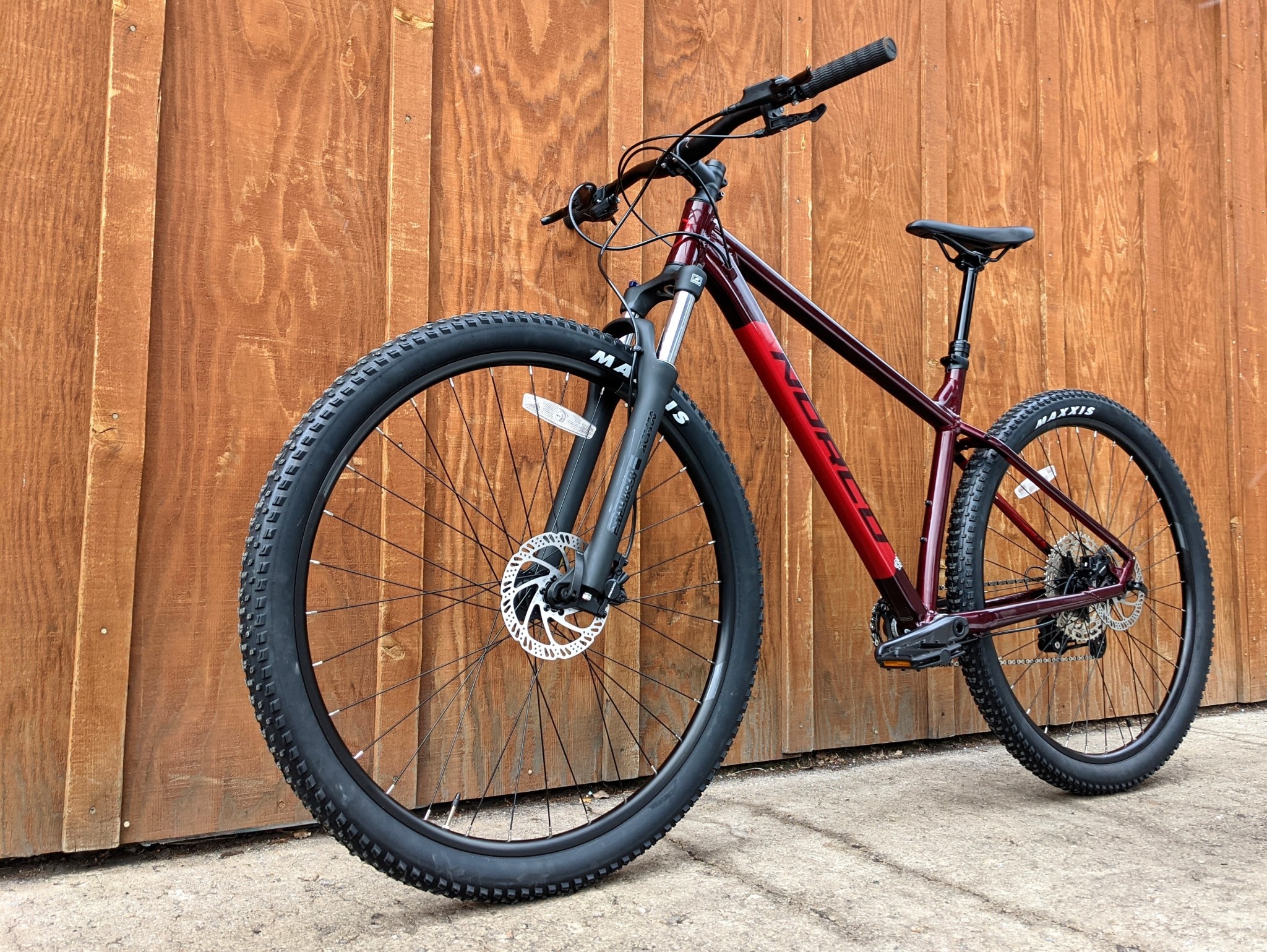

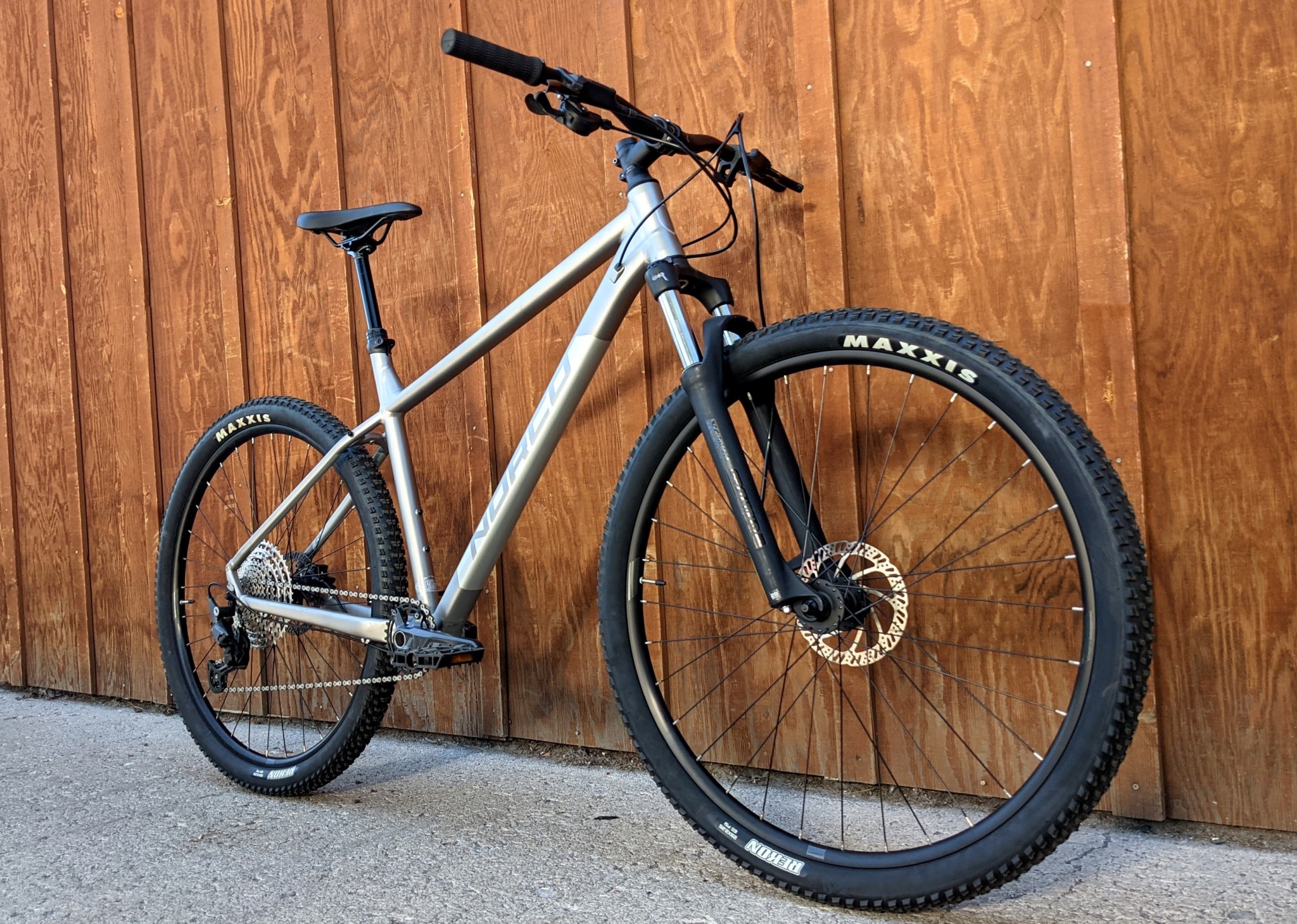

2021 Norco Storm 1 29"

$1,149.99
Available in store: Check availability

Available in store

Close
29" Wheels | 100mm Front Travel | 68.5° HT
Add to cart
Delivery time: 5-7 Business Days

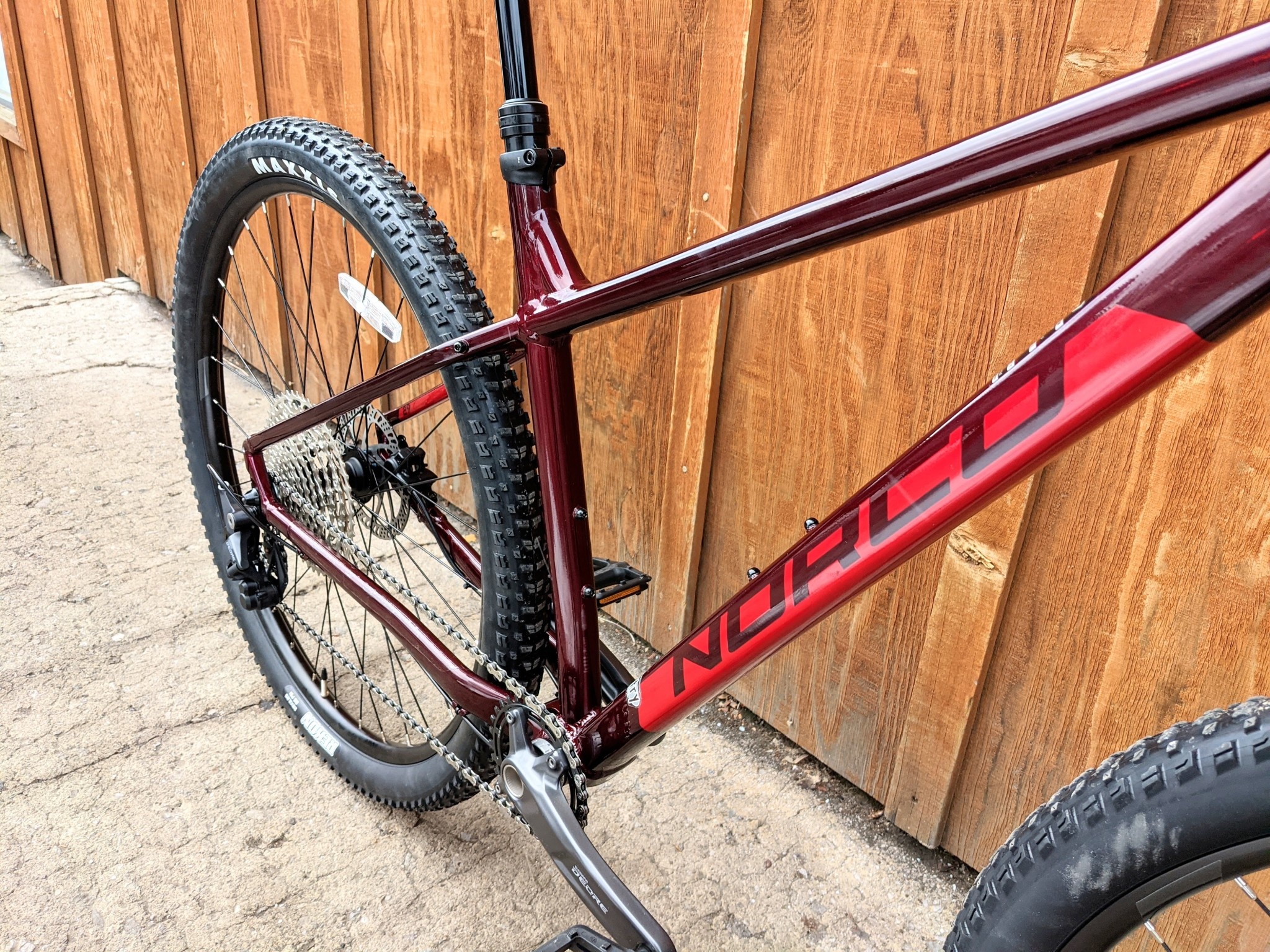

Frame 6061 Alloy, Internal Routing, Smooth Welds

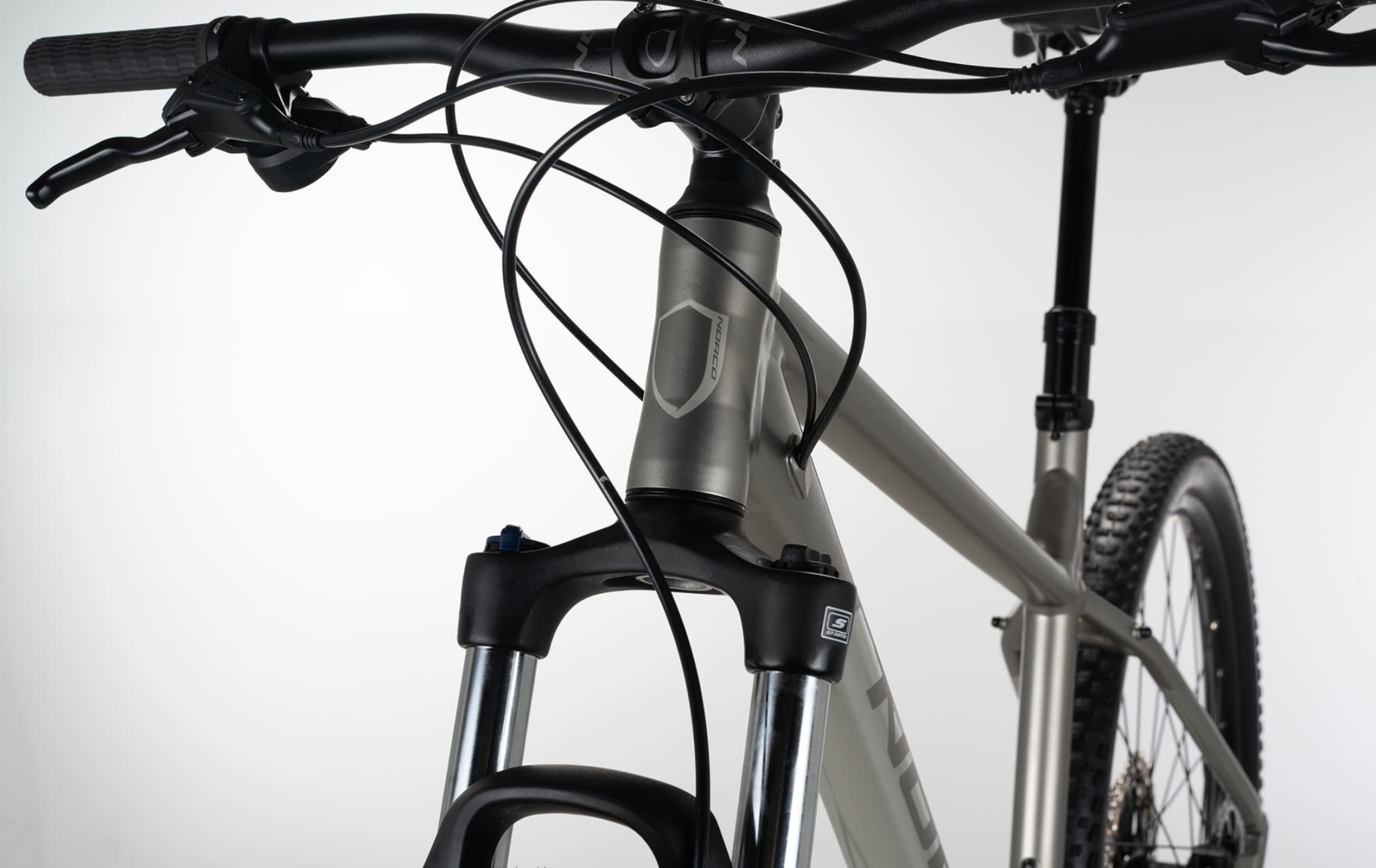

Fork Suntour XCM HLO DS, 100mm, 42mm Offset (27.5), 46mm Offset (29)
Headset Zero Stack

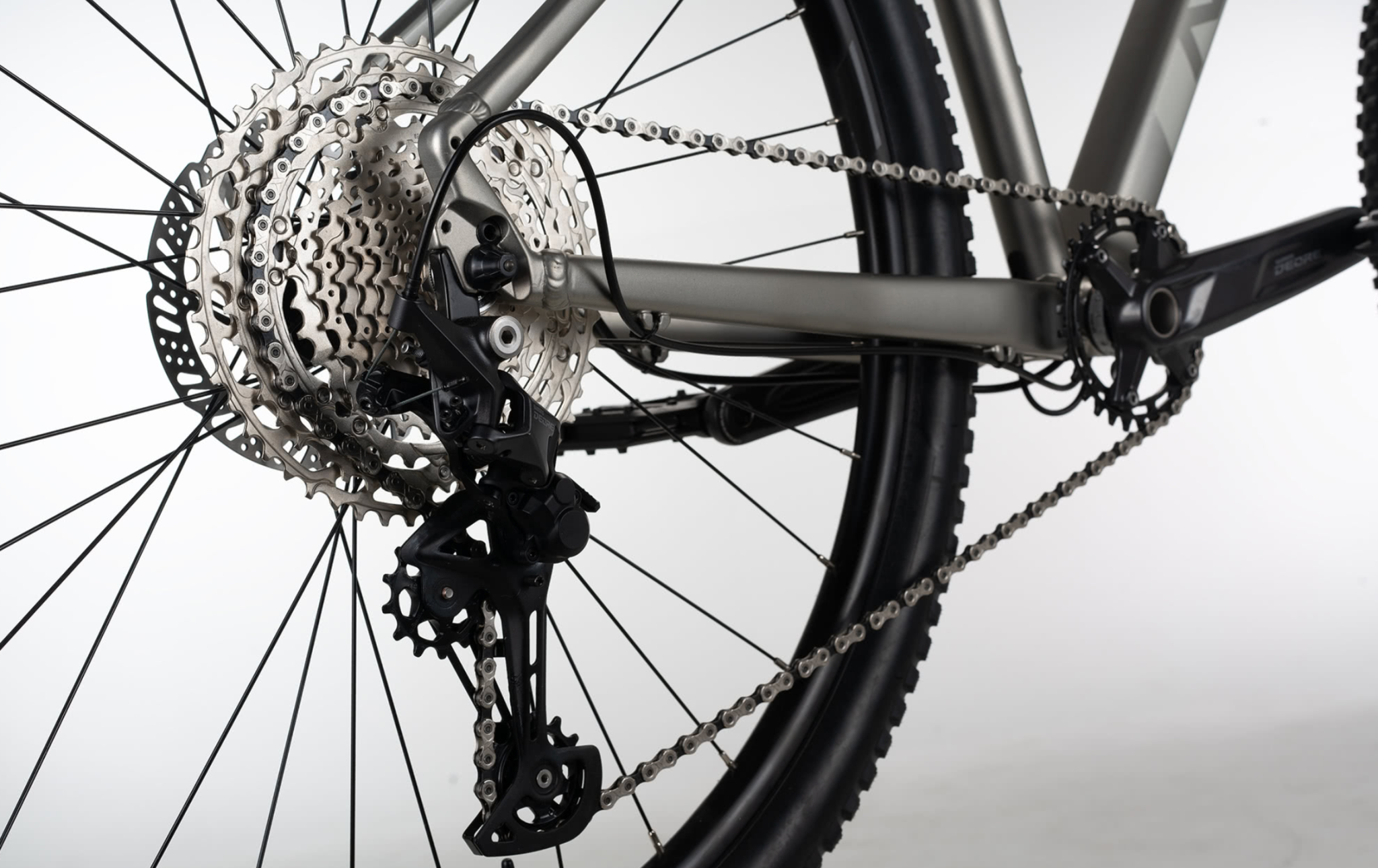

Rear Derailleur Shimano Deore RD-M5100
Cassette Shimano Deore CS-M5100, 11-51T, 11 Speed
Chain KMC X11
Crankset Shimano Deore FC-M5100-1, 30T, 170mm (XXS, XS, S), 175mm (M, L, XL)
Bottom Bracket Shimano Cartridge Bearing, BSA Threaded
Pedals VP Nylon Flat
Grips VP Lock-On
Handlebar X6 Alloy, 720mm (XXS, XS, S), 740mm (M, L, XL), 25mm Rise
Stem Alloy 60mm, 31.8mm Clamp
Seatpost TranzX YSP18 Dropper, 130mm
Seatpost Clamp
Saddle Norco XC
Front Brake Tektro HD-M275 Hydraulic, Resin Pads
Rear Brake Tektro HD-M275 Hydraulic, Resin Pads
Brake Levers Tektro HD-M275, HD-M276 Short Reach on Step-Thru
Front Hub Alloy QR, 9x100mm QR, 6 Bolt
Rear Hub Alloy QR, 10x135mm QR, HG, 6 Bolt
Rims Alex DP21 TRS
Spokes/Nipples Stainless Black
Front Tire Maxxis Rekon DK60 2.25"
Rear Tire Maxxis Rekon DK60 2.25"
FROM THE MANUFACTURER

With a comfortable, capable off-road design, the 6061 aluminum frame is off-road worthy, and capable of leading a double life on city streets and park paths. Designed with our holistic approach to fit and geometry, the Storm 1’s longer reach, slacker head tube angle and steep seat tube angle provides more powerful, efficient pedaling, increased climbing traction and added grip and control when descending.

Complementing its 100mm of SR Suntour XCM HLO DS fork travel is a solid, reliable Shimano Deore 1x11 drivetrain, so you can always find the right gear and spend less time at the shop. The Tektro hydraulic disc brakes provide controllable power for confident, safe stops on and off of the road. The Storm 1 also features a 130mm Dropper post for added trail capability.



GEOMETRY & SIZING

Frame Size: M L XL
Travel (mm front): 100
Reach: 425 455 485
Stack: 624 633 643
Head Tube Angle: 68.5
Fork Offset: 51
Seat Tube Length: 470 510 550
Effective Seat Tube Angle: 75
Rear Centre Length: 450
Bottom Bracket Drop: 63
Bottom Bracket Height: 310
Horizontal Top Tube: 592 625 657
Wheel Base: 1146 1180 1214
Stand Over: 686 721 754
Head Tube Length: 105 115 125
Trail: 92
Maximum Post Insertion: 240 280 300
Stem Length: 60
Crank Length: 175
Tire Size: 2.0" - 2.35"
Water Bottle Compatible: 2x750mL
