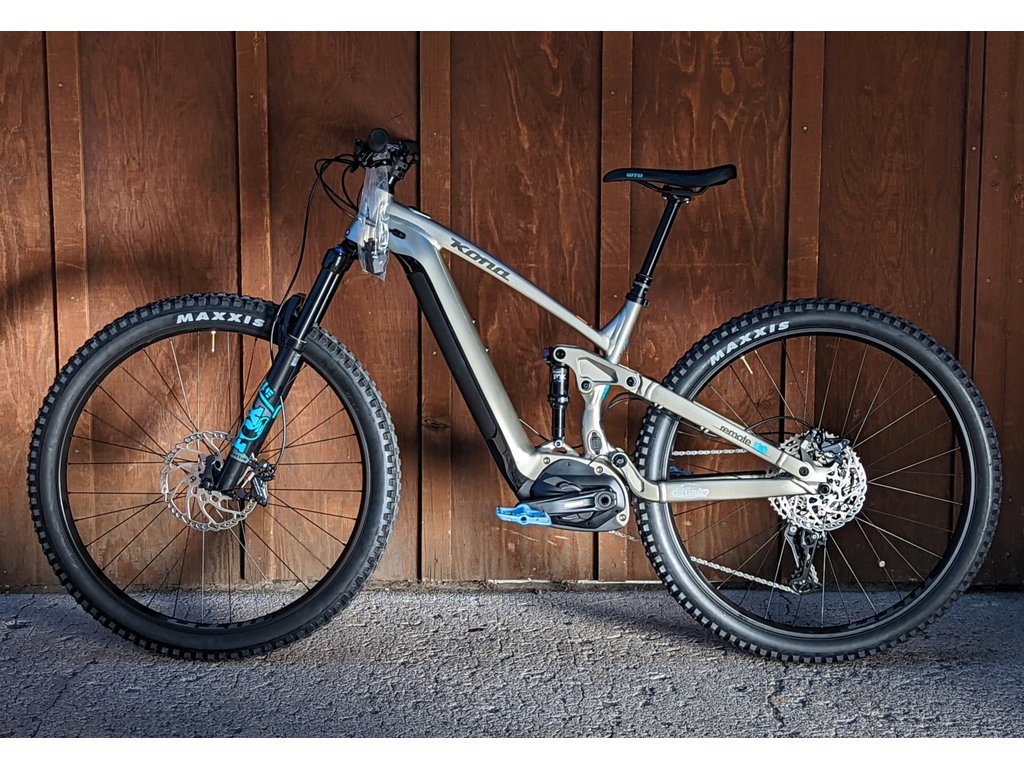

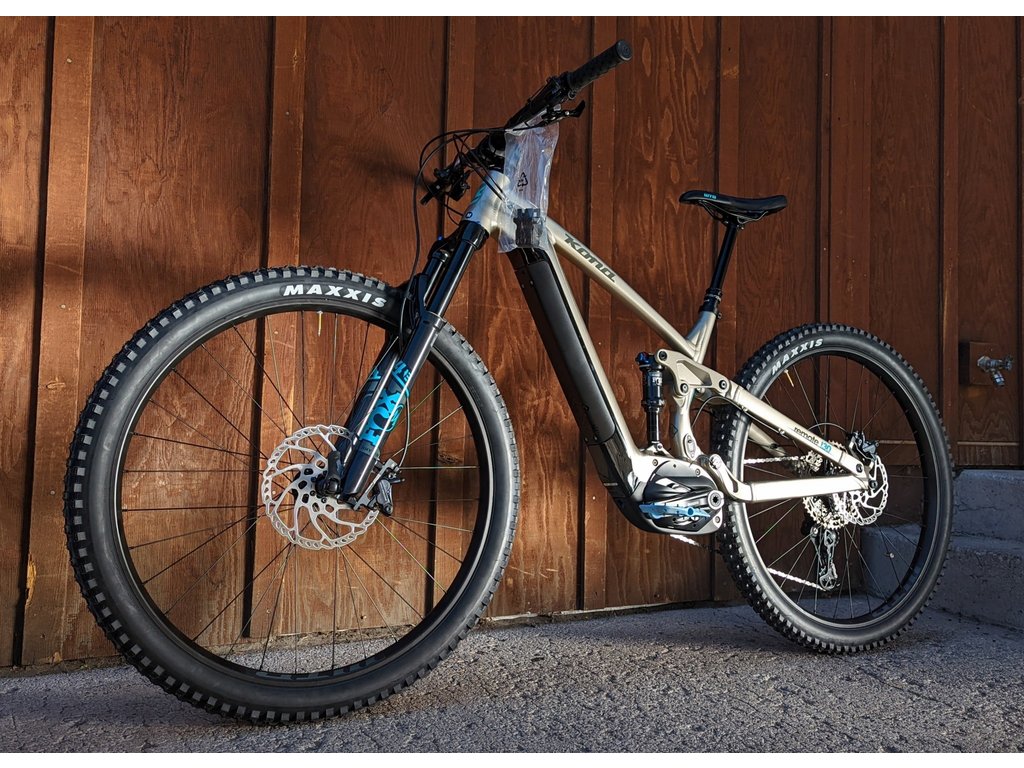

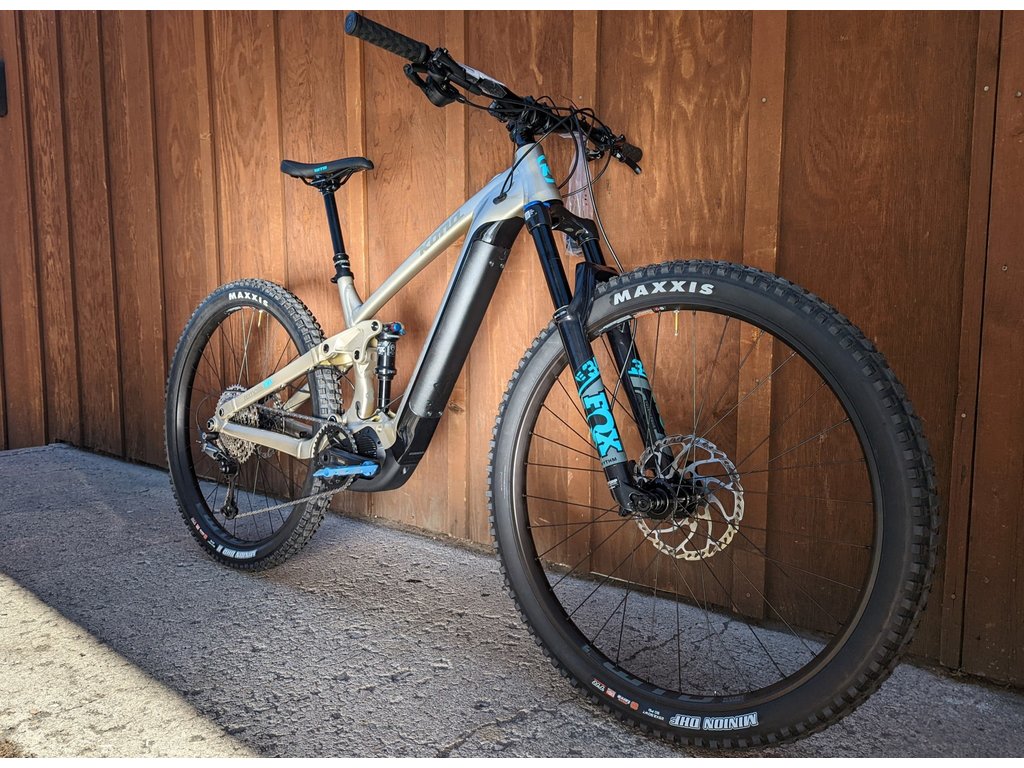

2022 Kona Remote 130 29" - X-Large

$6,399.99 $4,479.99

Kona

•••••

Available in store: Check availability

Shimano E7 | 504Wh Battery | 130mm Rear/140 Front Travel | 65° HT

Financing Available

Full Service Repair Shop

Shop Sale

Description
Reviews

Frame	Kona 6061 Aluminum Butted 130mm Travel
Wheel Size	29"
Travel	140 mm Front / 130 mm Rear
Fork	Fox Rhythm 34 Float 140mm Tapered 110 Spacing

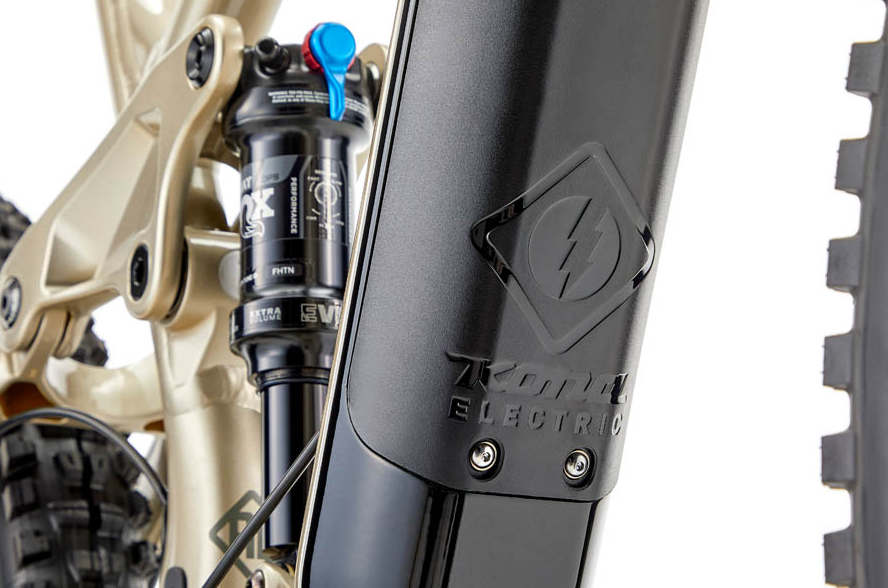

Rear Shock	Fox Performance Float Trunnion
Headset	FSA No.57E

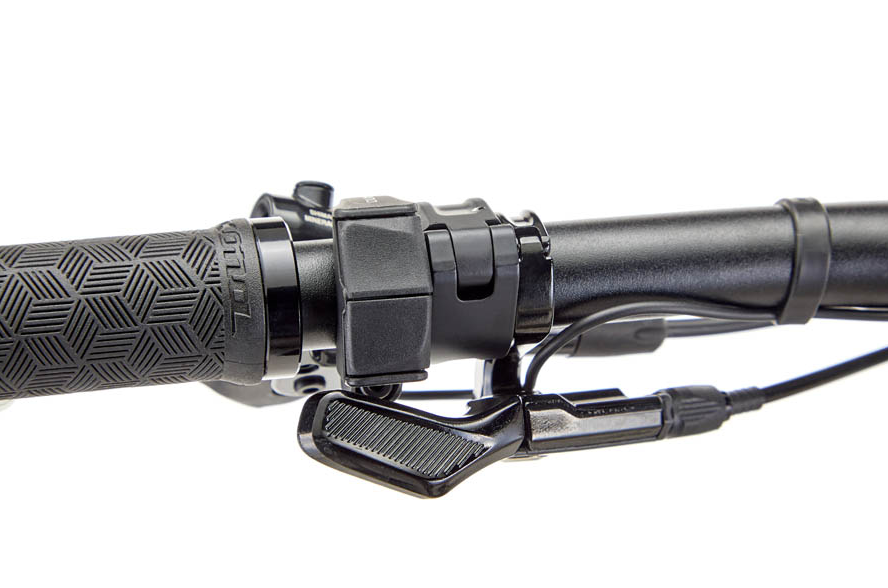

Shifter	Shimano Deore

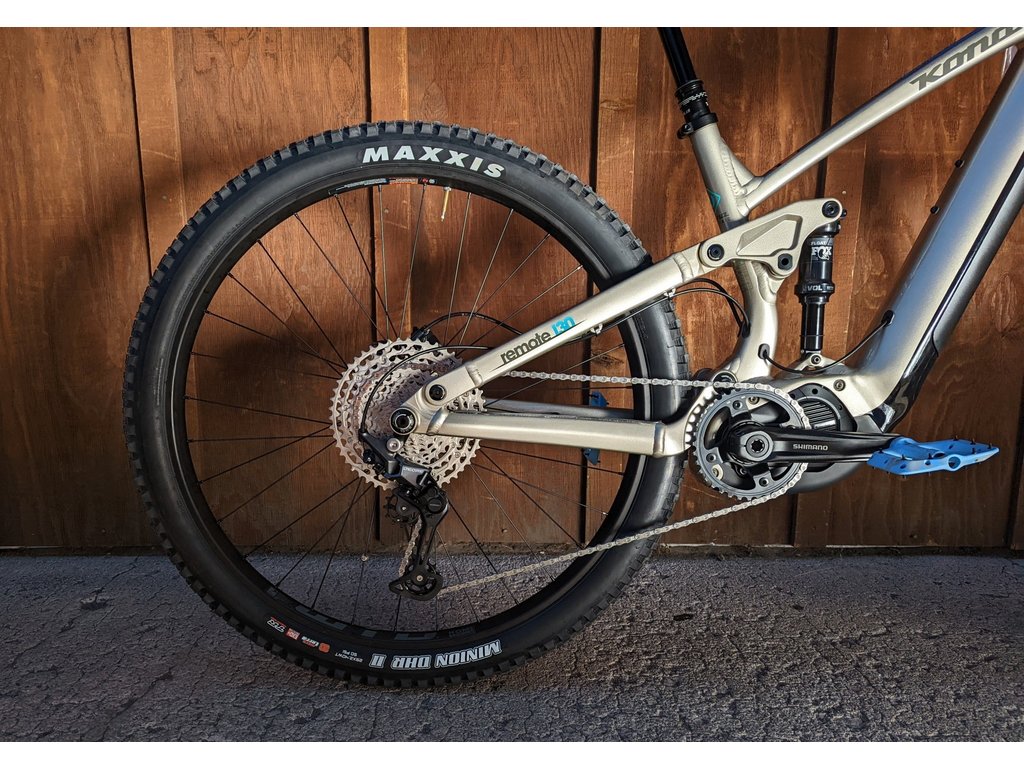

Rear Derailleur	Shimano Deore
Cassette	Shimano Deore 10-51t 12spd
Chain	Shimano Deore
Chainring	36t
Crankset	Shimano E8000
Brakes	Shimano Deore
Rotors	Shimano RT66 203 mm Front \| Shimano RT66 180 mm Rear
Seatpost	TranzX Dropper Internal 31.6mm
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Grips	Kona Key Grip
Saddle	WTB Volt
Pedals	N/A
Front Wheel	Rim: WTB KOM Trail i35 TCS 2.0 \| Hub: Formula 110x15mm \| Spokes: Stainless Black 14g
Rear Wheel	Rim: WTB KOM Trail i35 TCS 2.0 \| Hub: Formula 148x12mm \| Spokes: Stainless Black 14g
Front Tire	Maxxis Minion DHF EXO+ TR 3C 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT
Drive Unit	Shimano E7000 20MPH
Battery	Shimano 504Wh

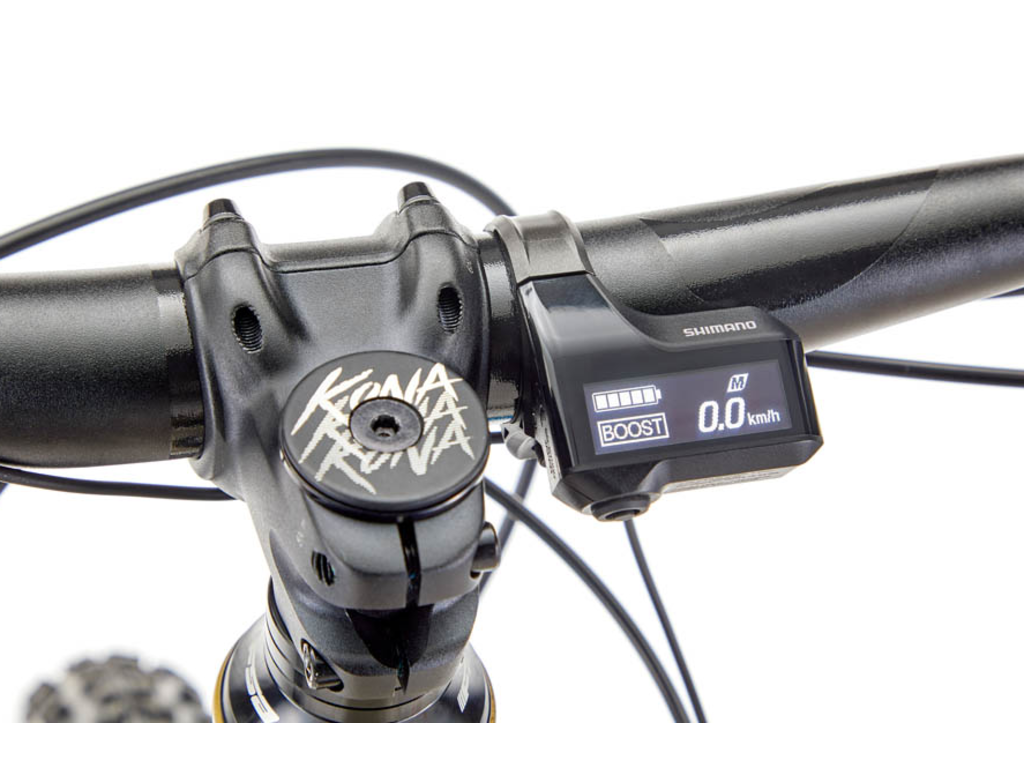

Display	Shimano SC-E7000 Display
Extras	N/A
Sizes	S, M, L, XL

FROM THE MANUFACTURER

If you're familiar with Kona, then you may know that the Process line is some of their finest craftsmanship.

Combining the 134 and 153, the Remote 130 was born. The best features of both bikes, and then add the pedal assist. This bike is ready for the ultimate fun.

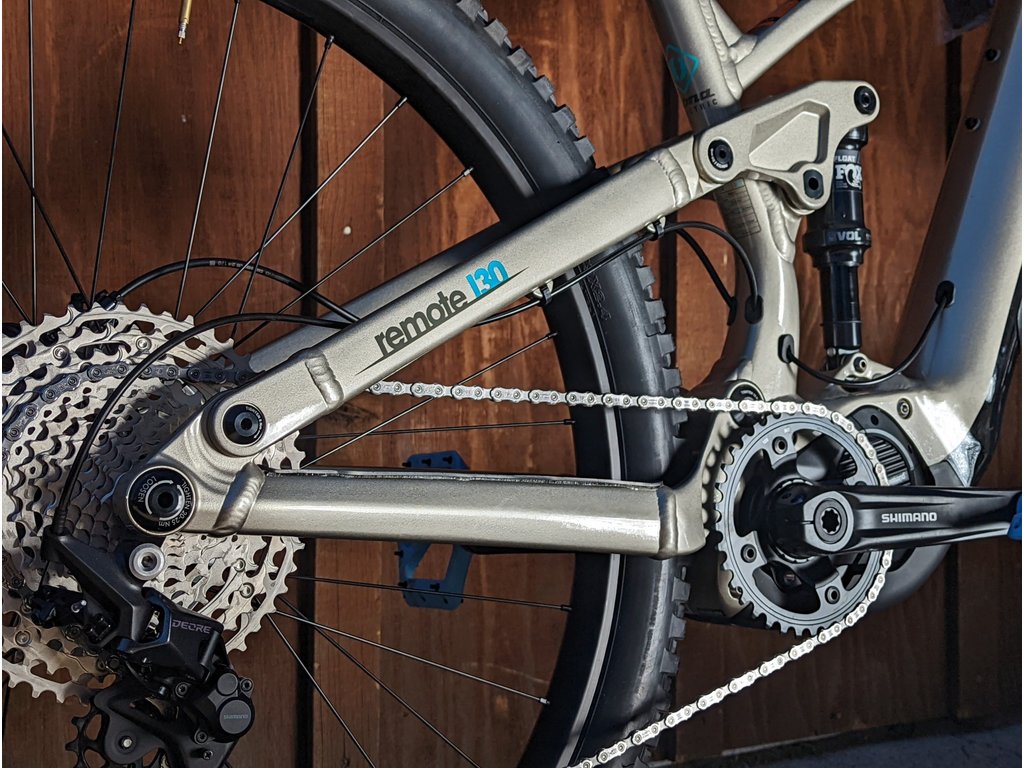

A sturdy aluminum frame holds Shimano’s E7000 motor and 504 Wh battery. Suspension is provided by a 140mm Fox Rhythm 34 Float fork and Performance Float rear shock. Shimano’s new 12-speed Deore drivetrain and 4-piston brakes provide the stop and go. 29” WTB KOM Trail i35 TCS 2.0 wheels are wrapped in Maxxis Minion EXO+ TR 3C rubber.

FEATURES

Suspension Platform: Beamer
Drivetrain: Shimano Deore 12spd
Seat Post: TranzX dropper post Internal 31.6mm
Motor: Shimano E7000 20mph
Battery: Shimano 504W
Display: Shimano SC-E7000

GEOMETRY & SIZING

	Size	S	M	L	XL
1	ST Length	385	410	450	485
2	TT Length	570	597	626	665
3	Reach	425	450	475	510
4	Stack	610	615	625	635
5	Standover	720	720	720	725
6	HT Angle	65
7	HT Length	113	118	130	140
8	ST Angle	76.6	76.5	76.4	76.3
9	CS Length	435
10	BB Drop	30
11	BB Height	345
12	Wheelbase	1186	1213	1243	1282
13	Front Center	752	780	809	849
14	Fork Length	551
15	Fork Offset	51
all measurements in mm
