| Frame | Carbon |
| Wheel Size | 29" |
| Travel | 170mm Front | 165mm Rear |
| Fork | Fox Performance 38 29", 44mm offset, GRIP - 170mm |

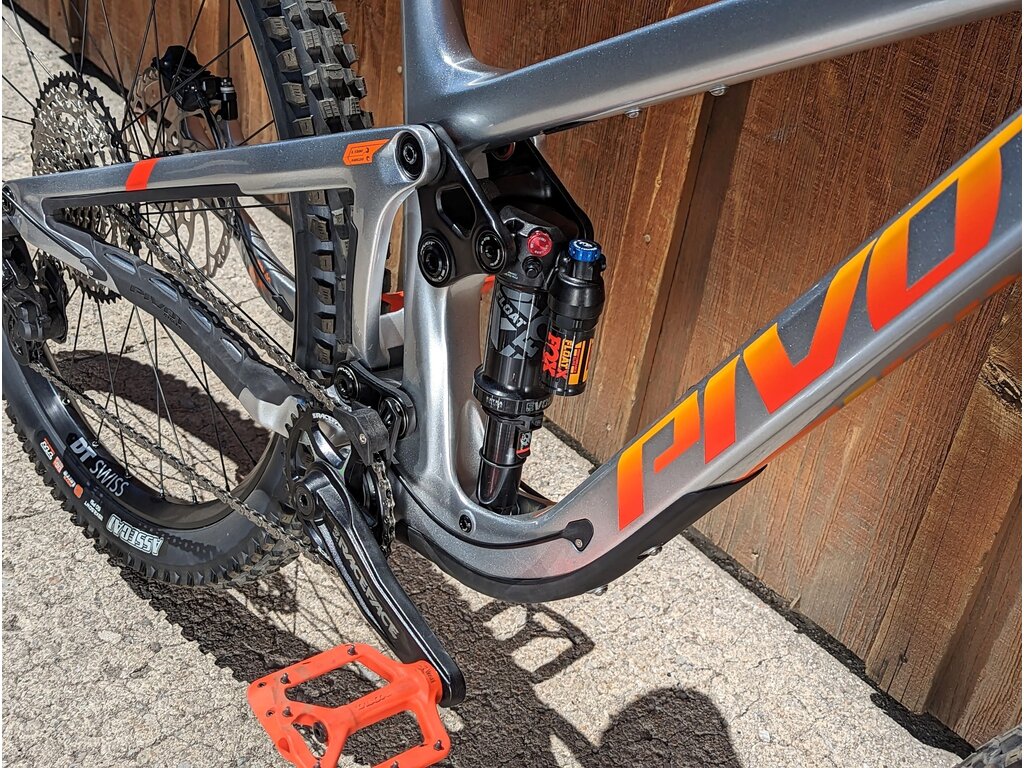

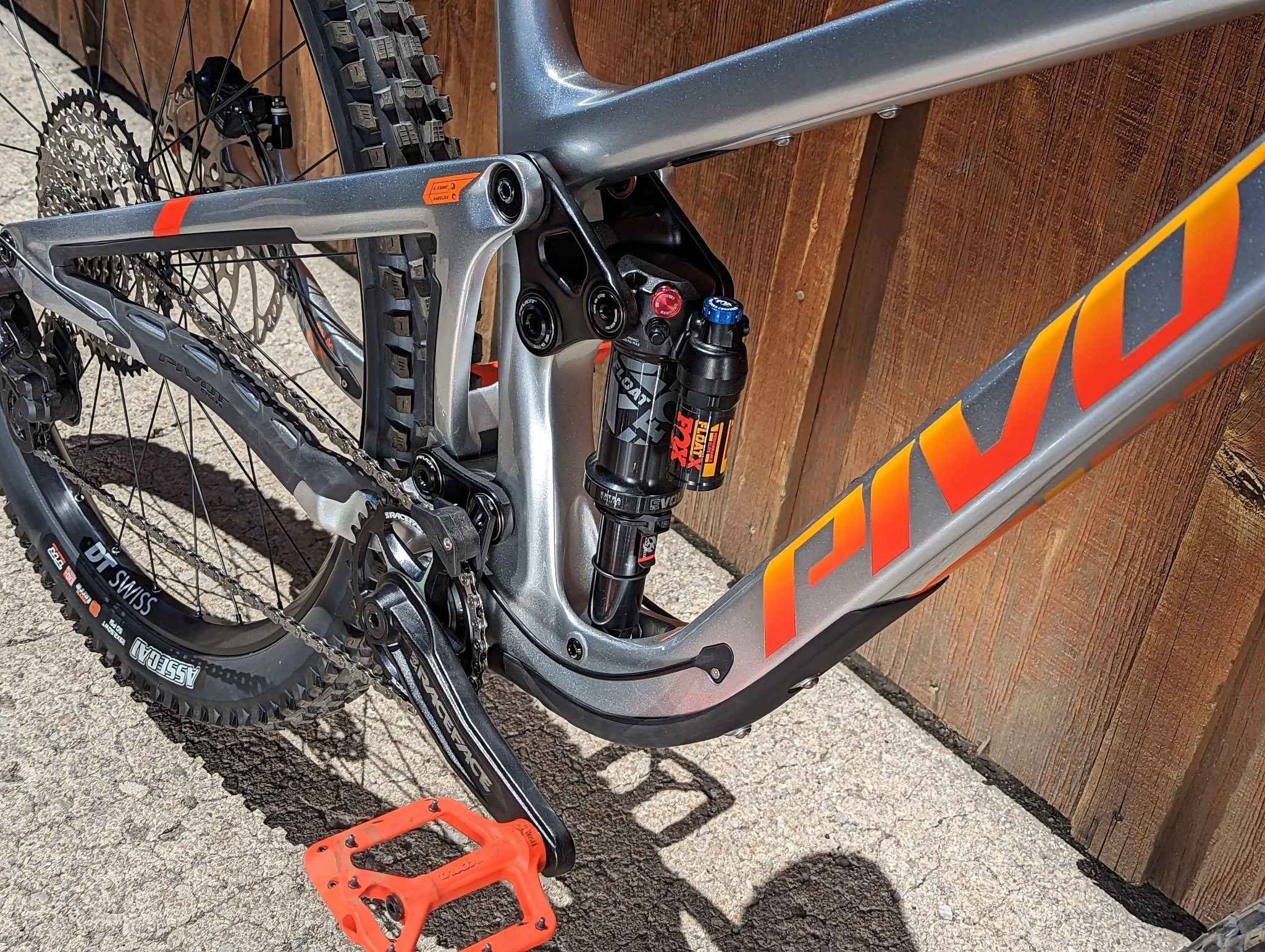

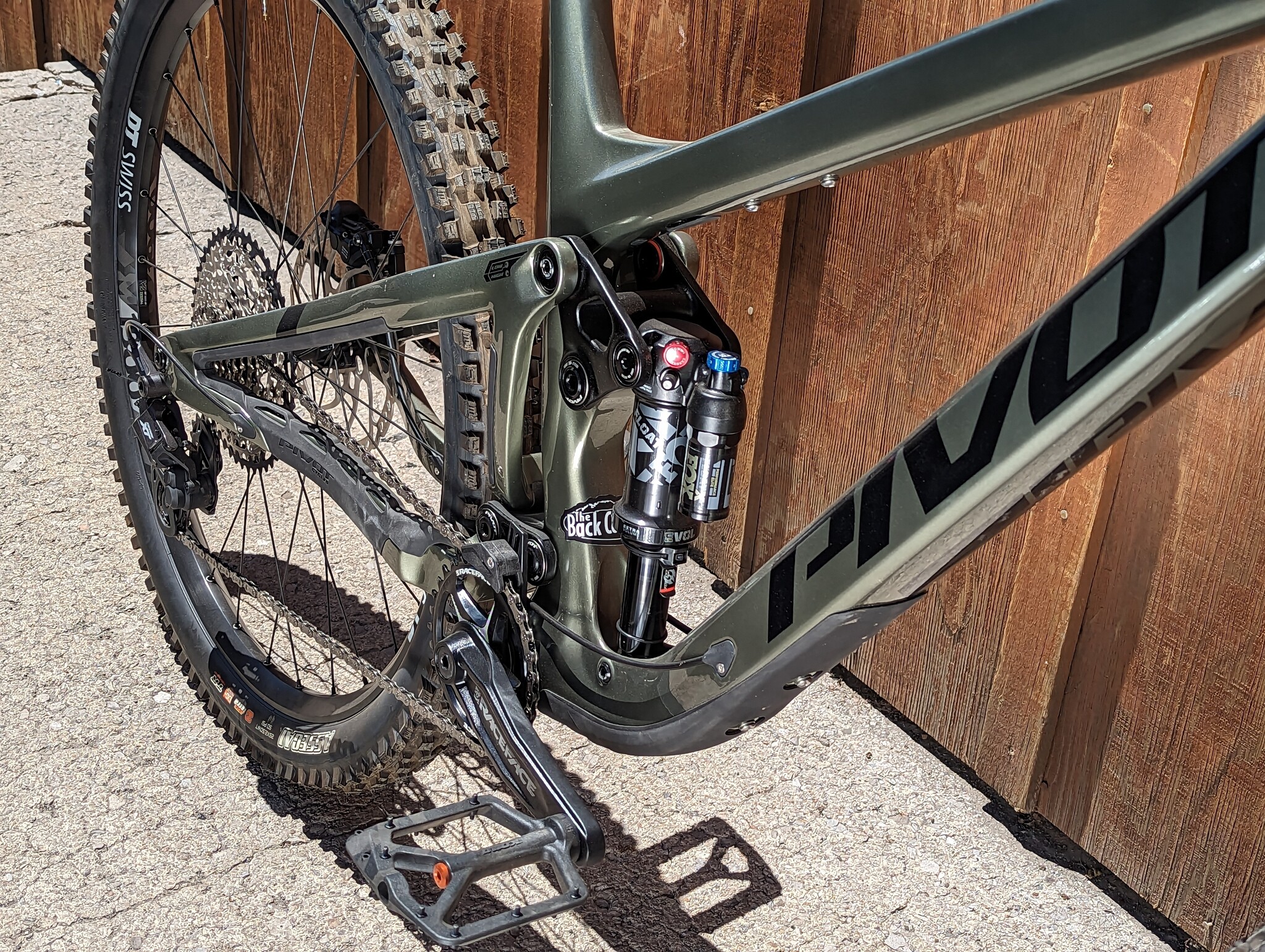

| Rear Shock | Fox Performance Elite Float X - 165mm |
| Headset | Pivot Precision Sealed Cartridge |
| Bottom Bracket | - |
| Shifter | Shimano SLX M7100 ISPEC EV 12spd |

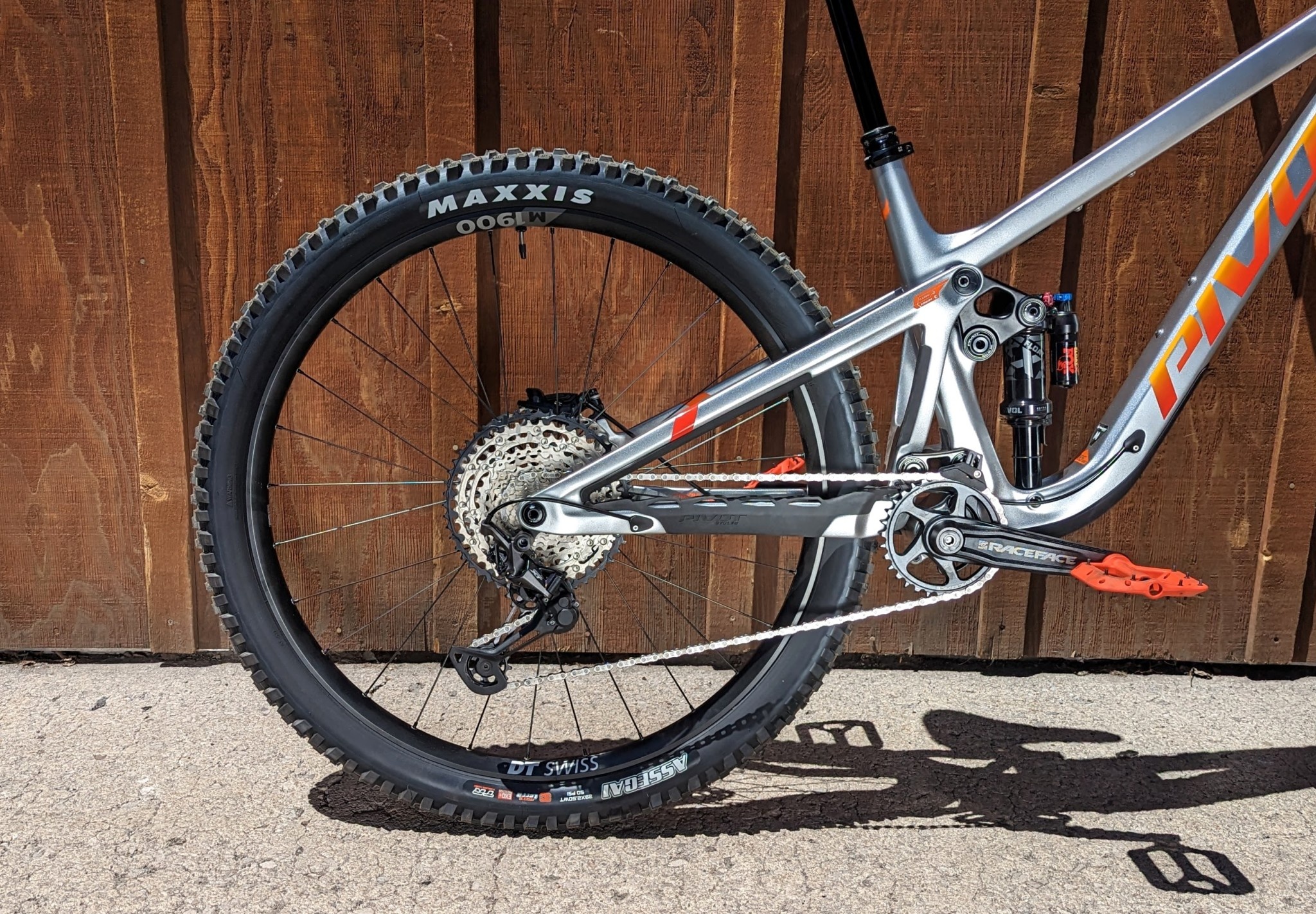

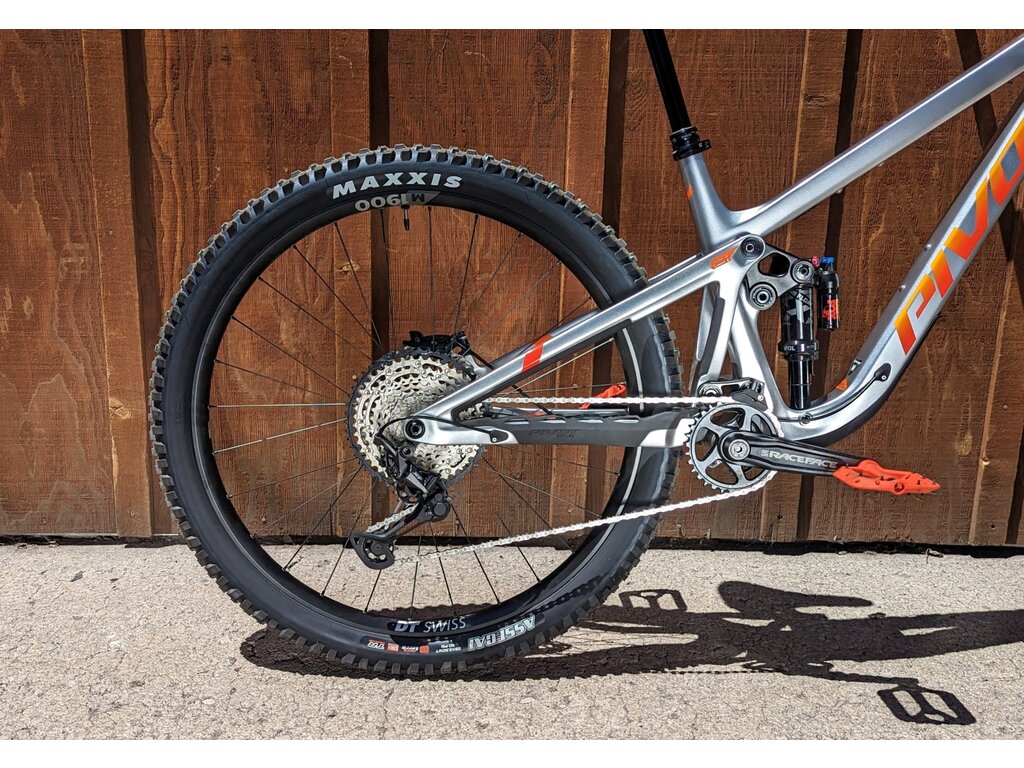

| Rear Derailleur | Shimano XT M8100 SGS 12spd |
| Cassette | Shimano SLX M7100 10-51t |
| Chain | Shimano CN-M7100 12spd |
| Chainring | - |

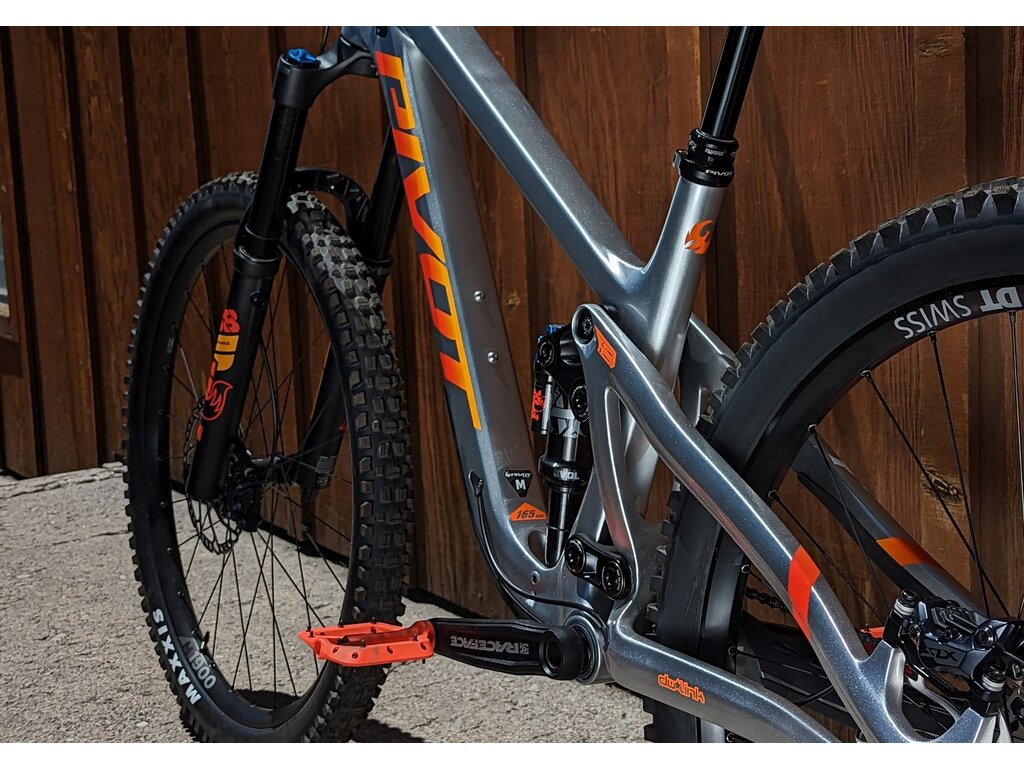

| Crankset | Race Face Ride 32t |
| Brakes | Shimano SLX M7100 4-Piston |
| Rotors | 203mm 6-Bolt Rotor |
| Seatpost | Fox Transfer Performance Elite 150mm (SM), 175mm (MD-LG), 200mm (XL) |
| Handlebar | Phoenix Race Low Rise Aluminum - 800mm |
| Stem | Phoenix Team Enduro/Trail |
| Grips | Phoenix Factory Lock-On |
| Saddle | Phoenix WTB Volt Race (Medium Width) |
| Pedals | N/A |
| Front Wheel | DT Swiss M1900 w/ DT Swiss 370 Hub, 30mm - 29" 15 x 110 |
| Rear Wheel | DT Swiss M1900 w/ DT Swiss 370 Hub, 30mm - 29" 12 x 157 |
| Front Tire | Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA |
| Rear Tire | Maxxis Assegai 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA |
| Sizes | S, MD, L, XL |
FROM THE MANUFACTURER
The DNA of Velocity
Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Fast up, fast down. Fast.
Not As Sweet As It Looks
The Firebird's Hollow Core carbon construction cleanly disguises its psychotic side with a taut, sturdy, deceptively lightweight frame that calmly gets you out of the most gripped situations, Super-capable suspension, planted handling, perfectly selected components, shaken, not stirred; the cocktail mix for blazing speed. Drink up!
FEATURES
| Frame |
|
|
| Suspension |
|
|
| Wheels |
|
|
| Seatpost |
|
|
| Other Features |
|
GEOMETRY
*All measurements in cm
Low BB
| SM | MD | LG | XL | |
| Seat Tube Length | 37.5 | 41 | 44 | 47 |
| Top Tube Length | 59.8 | 62.4 | 64.1 | 66.5 |
| HT Length | 9.5 | 10.8 | 11.8 | 12.8 |
| HT Angle | 64° | 64° | 64° | 64° |
| Seat Tube Angle (eff.) | 76° | 76.5° | 77° | 77° |
| Chainstay | 43.1 | 43.4 | 43.8 | 44.5 |
| BB Height | 35 | 35 | 35 | 35 |
| BB Drop | 2 | 2 | 2 | 2 |
| Standover | 66.2 | 67.2 | 69.3 | 70.4 |
| Wheelbase | 120.7 | 123.9 | 126.7 | 130 |
| Reach | 44.5 | 46.8 | 48.8 | 51 |
| Stack | 61.5 | 62.7 | 63.6 | 64.5 |
High BB
| SM | MD | LG | XL | |
| Seat Tube Length | 37.5 | 41 | 44 | 47 |
| Top Tube Length | 59.7 | 62.3 | 64 | 66.4 |
| HT Length | 9.5 | 10.8 | 11.8 | 12.8 |
| HT Angle | 64.6° | 64.6° | 64.6° | 64.6° |
| Seat Tube Angle (eff.) | 76.5° | 77° | 77.5° | 77.5° |
| Chainstay | 43 | 43.3 | 43.7 | 44.4 |
| BB Height | 35.6 | 35.6 | 35.6 | 35.6 |
| BB Drop | 1.42 | 1.42 | 1.42 | 1.42 |
| Standover | 66.7 | 67.8 | 69.9 | 70.9 |
| Wheelbase | 120.6 | 123.7 | 126.6 | 129.9 |
| Reach | 45 | 47.3 | 49.3 | 51.5 |
| Stack | 61.2 | 62.4 | 63.3 | 64.2 |
Add your review

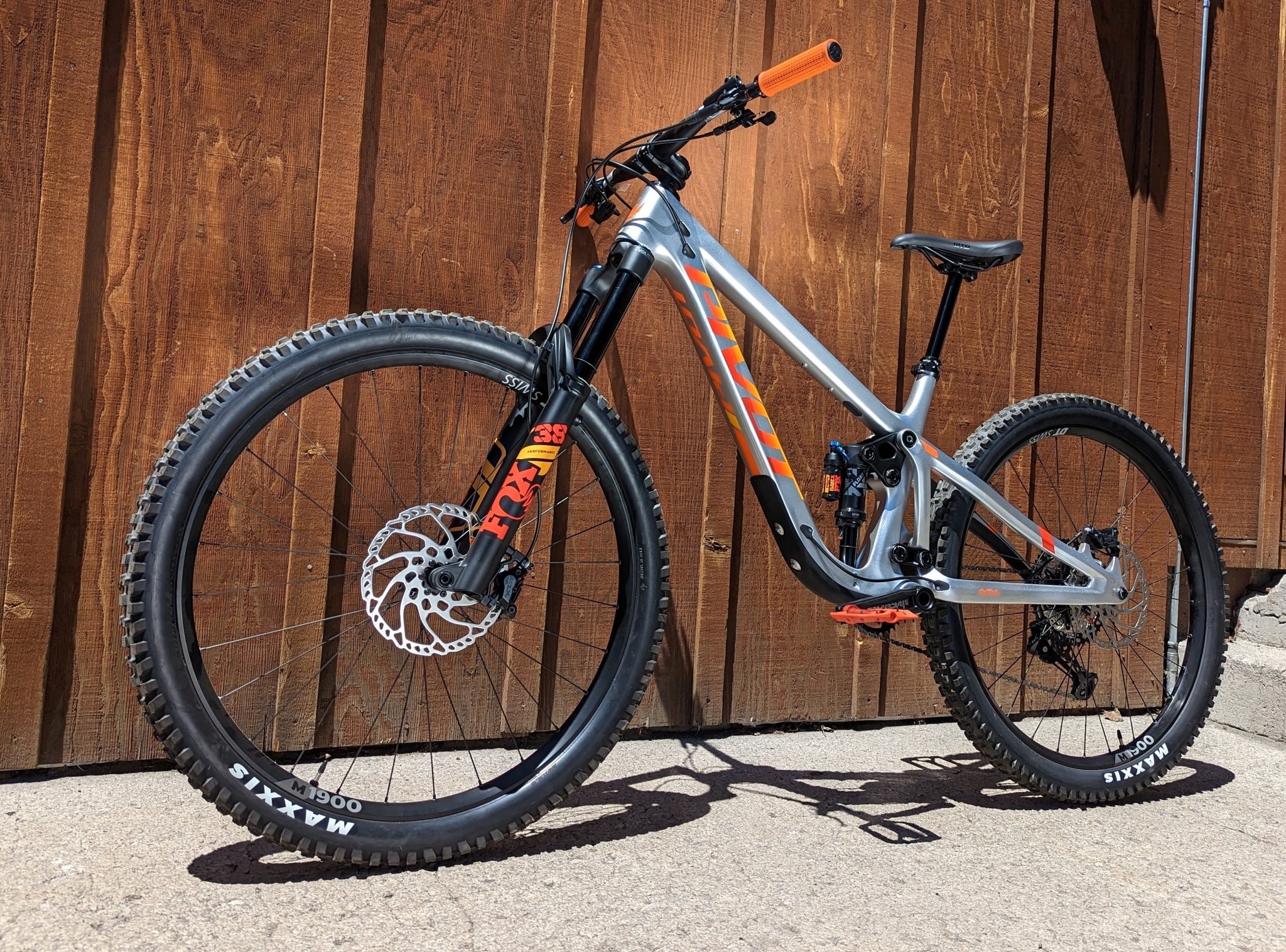

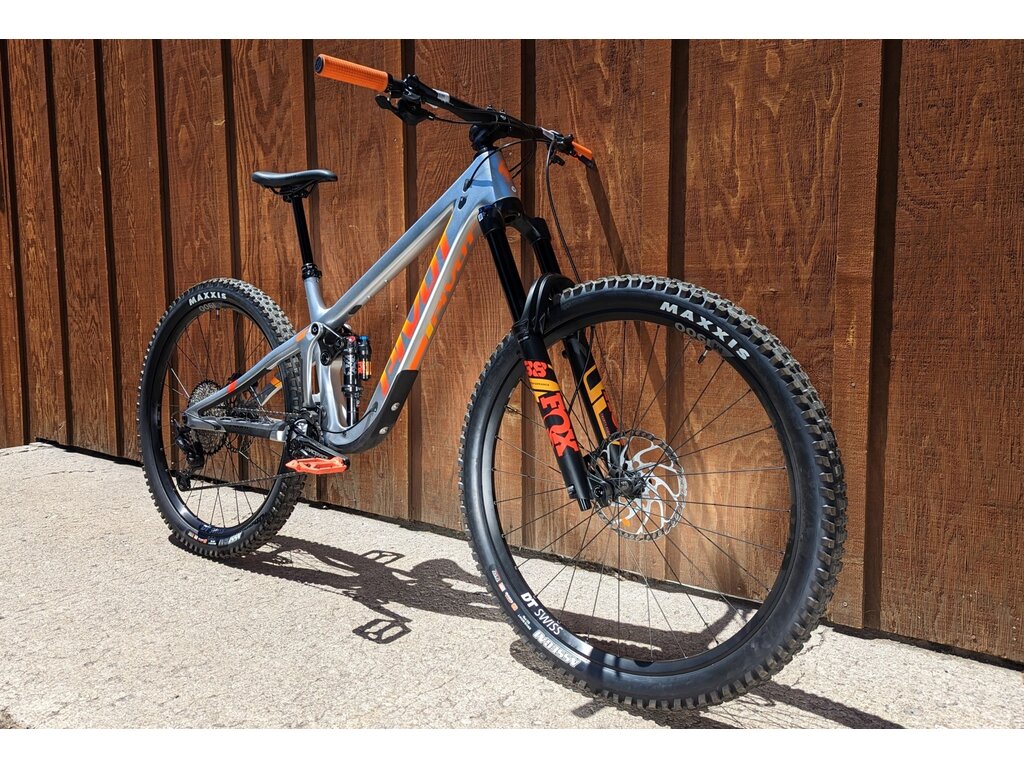

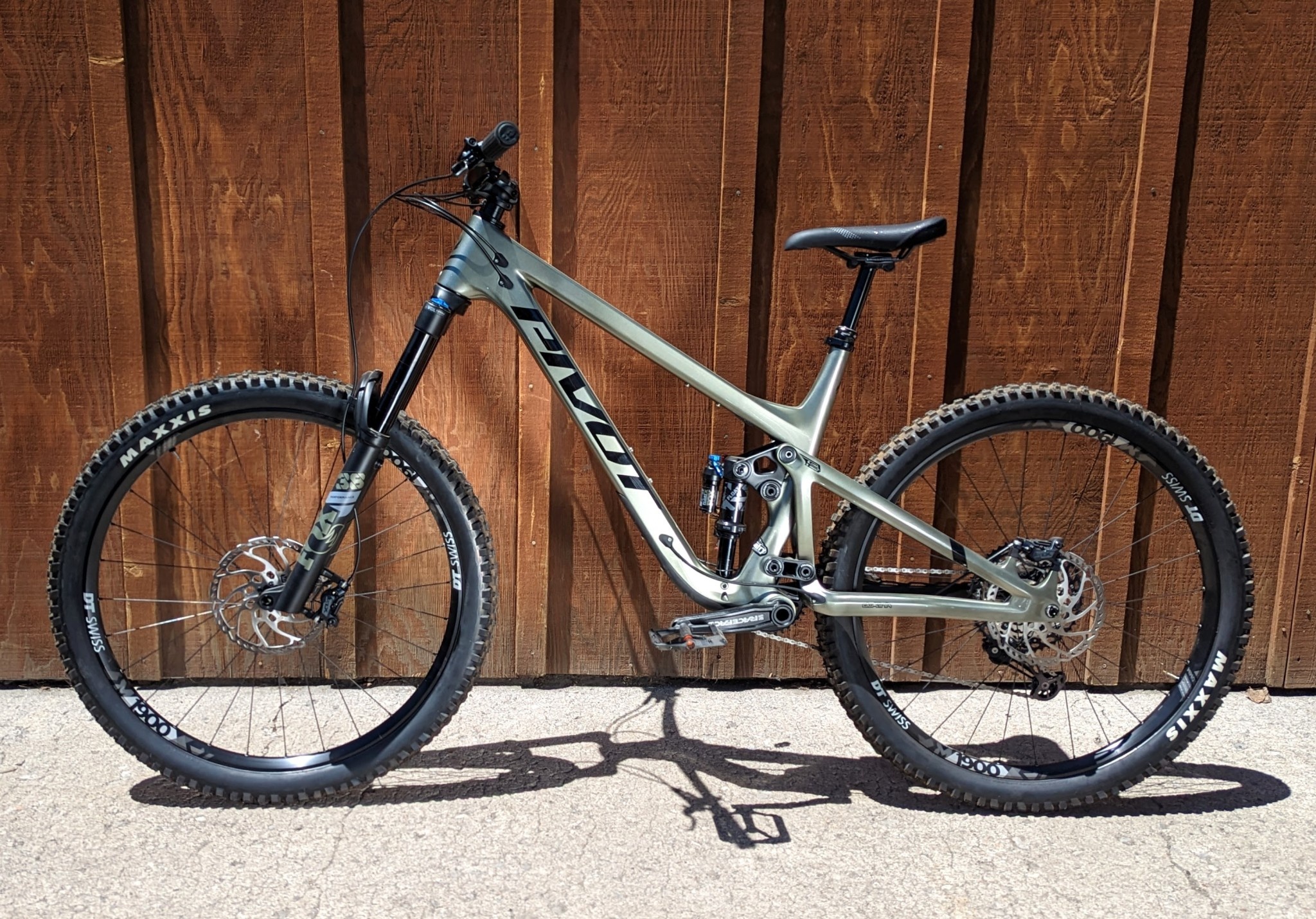

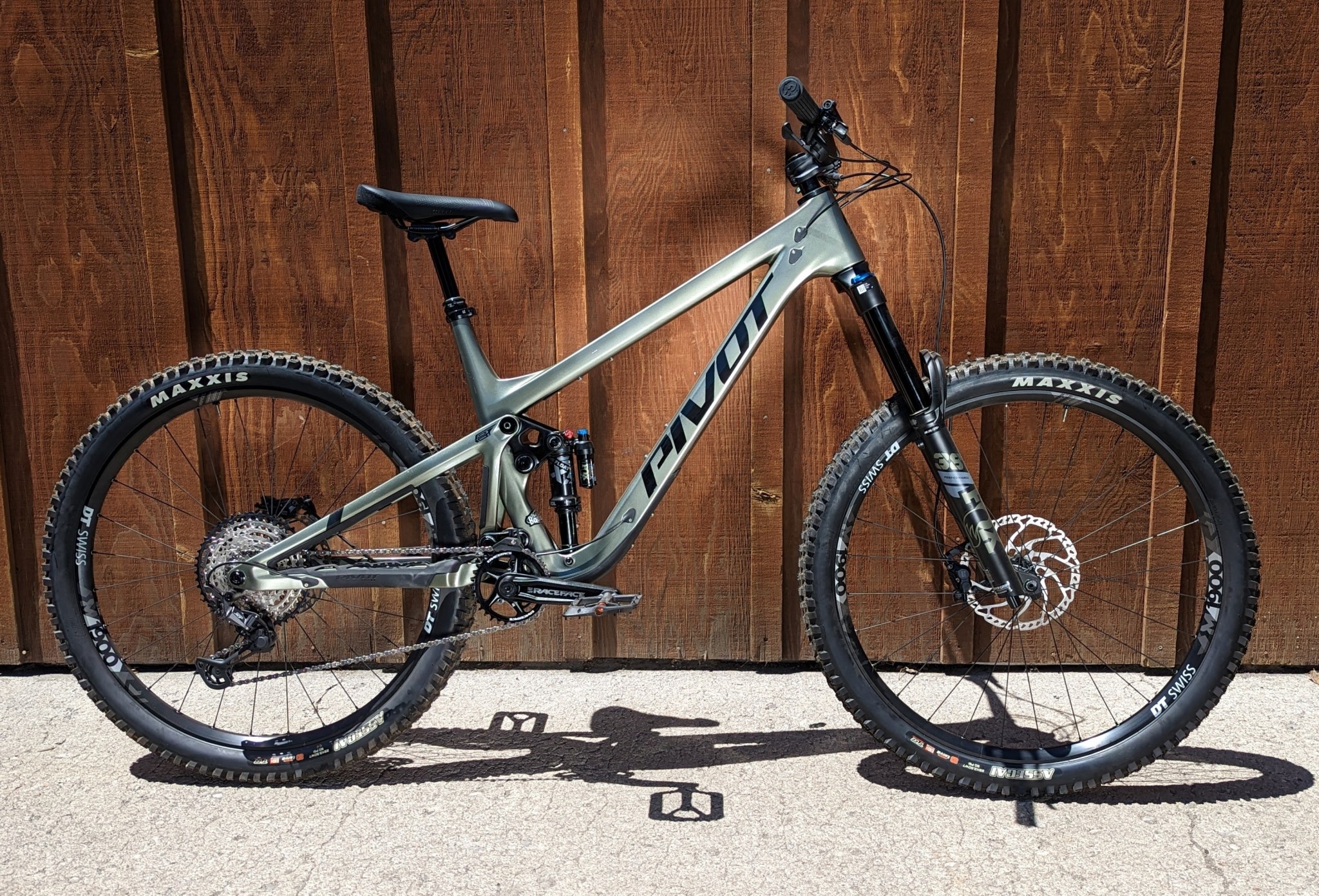

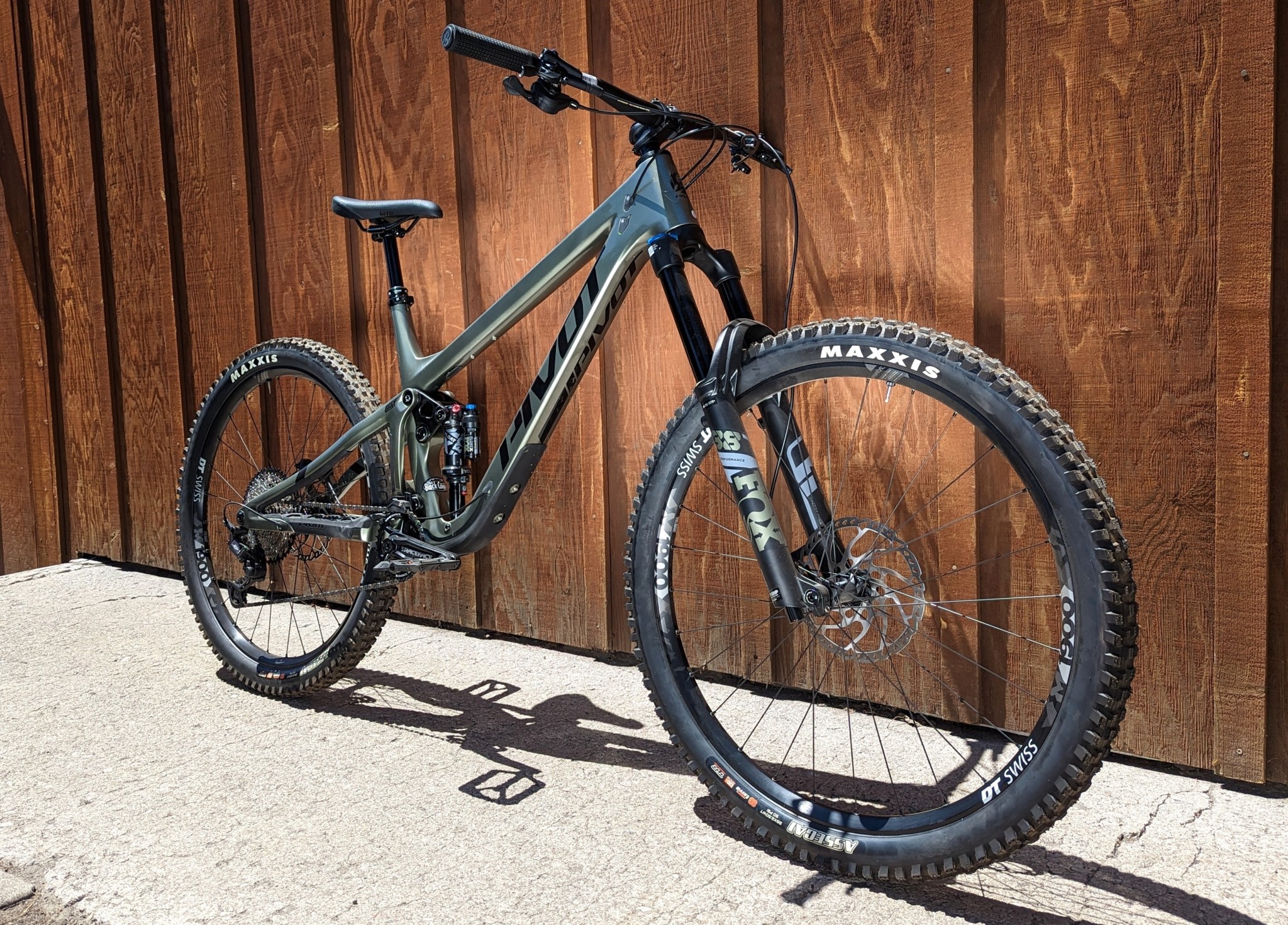

Review 2024 Pivot Firebird 29" Ride SLX/XT
