Create an accountFrame | F-Play 26 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, QR 9mm rear axle, 1x dr |
Wheel Size | 26" |
Travel | 140mm Front | 120mm Rear |
Fork | X-Fusion Velvet RL 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 32mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload |
Rear Shock | X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings |
Headset | Acros AZX-239 R1 Block Lock 135°, ZS44/28.6 top, ZS56/40 bottom |
Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1 |
Rear Derailleur | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
Cassette | Sram PG 1230, 11-50T, 12s |
Chain | Sram SX Eagle, 12s, Powerlock |
Chainring | |
Crankset | Sram SX Eagle, DUB axle, Direct mount chain ring, 155mm |
Brakes | Sram G2 R, tool-free reach adjust, lever pivot bushings |
Rotors | Centerline 180mm IS 6 bolts one-piece rotor Front | 160mm Rear |
Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever, 405x95-125mm |
Handlebar | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
Grips | Onoff Twin, 1lock-on |
Saddle | SDG Fly JR |
Pedals | SDG Slater JR |
Front Wheel | MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes |
Rear Wheel | MDK-HP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes |
Front Tire | Kenda Regolith 26x2.4 120TPI, Folding TLR |
Rear Tire | Kenda Regolith 26x2.4 120TPI, Folding TLR |
Drive Unit | Mahle-Ebikemotion X-35 |
Battery | Mahle-Ebikemotion Internal 250Wh |
Display | Mahle-Ebikemotion |
Extras | N/A |
Sizes | One Size |
FROM THE MANUFACTURER
F-Play. E-Bikes That Help You Grow.
If you want your little-ones to get better at mountain biking you’ll need a bike that helps them do just that. That’s why we’ve completely redesigned our F-Play range, making them unarguably the best two-wheeled investment ever when it comes to smiles per mile. We’ve gone all-in, leveraging adult-bike tech to design the best kids bikes out there.
E-Bike Power, Normal Feel.

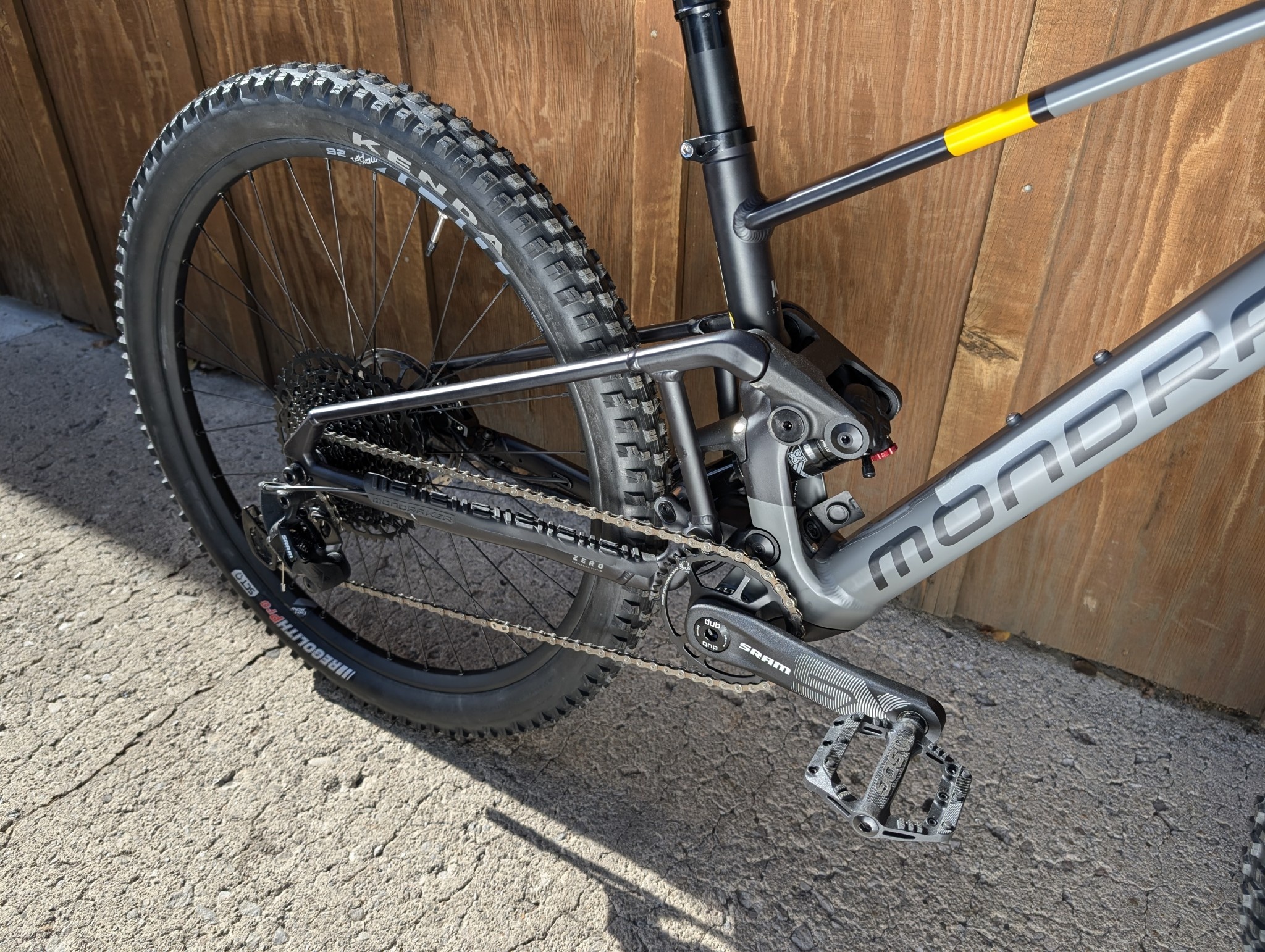

The new F-Play range has been developed in conjunction with the F-Trick range to make them ride as near as possible to a non-ebike: light, agile and responsive. To that end they share the same kinematic, Updated Zero Suspension System, suspension travel and a frame design that make them almost indistinguishable. The F-Play have a minimalist frame design with a stylized down tube which contains the 250Wh battery. The frame design includes the trademark Mondraker ‘window’ where the headtube meets the downtube and top tube, as well as being manufactured from Alloy Stealth Evo throughout.
FEATURES
F-Play Also Comes With The Latest Iteration of The Zero System
It’s not only the F-Trick that gets the Updated Zero Suspension System. The new F-Play enjoys the same new Zero system as the NEAT and F-PODIUM. This update delivers faster acceleration, more feedback and a faster response to your pedalling input. Simply put, each pedal stroke counts for more. This updated version of the Zero system also offers further benefits such as:
- Improved initial sensitivity and trail compliance
- A more progressive kinematic
- A lighter system with improved weight to stiffness ratio
- More compact with less unsprung weight
- Greater seatpost insertion depth
Mahle X35: Brings Out Your Best You
As with the hardtail ebike Play range, the F-Play utilizes the same Mahle E-Bikemotion X35 system, with its 40Nm motor and 250Wh internal battery. The system has three assist modes (Eco, Urban and Sport) which can be tuned via Mahle’s MySmartbike phone app. As with the Play, the F-Play 26” has the option of fitting an additional 210Wh range extender for those longer rides.
For-real Mountain Biking
The new F-Play range blurs the line between a kids’ bike and a bike for adults. As with the rest of the KIDS ranges, the F-Play comes with 2.4” tyres, an ONOFF Pija dropper post, a 30mm stem complimentary to Forward Geometry and a 1x chainset with a UDH mech hanger. It’s by far the closest thing to an adults’ ebike available in our kids ranges. It uses the same tech, the same technical resources and even the same components so that your little-ones can feel what you feel when out on their bikes.
GEOMETRY
- Seat Tube Length: 350 mm
- Top Tube Length: 550 mm
- Bottom Bracket Drop: -10 mm
- Bottom Bracket Height: 320 mm
- Chainstay Length: 420 mm
- Seat Tube Angle: 71°
- Eff. Seat Tube Angle: 76°
- Head Tube Angle: 67°
- Fork Offset: 39 mm
- Wheelbase: 1104 mm
- Head Tube Length: 90 mm
- Reach: 415 mm
- Stack: 545 mm
