| Frame | Shuttle LT Shimano |
| Wheel Size | 29" |
| Travel | 170mm Front | 160mm Rear |
| Fork | Fox Factory E-MTB 38 29", 44mm Offset, GRIP2 - 170mm |

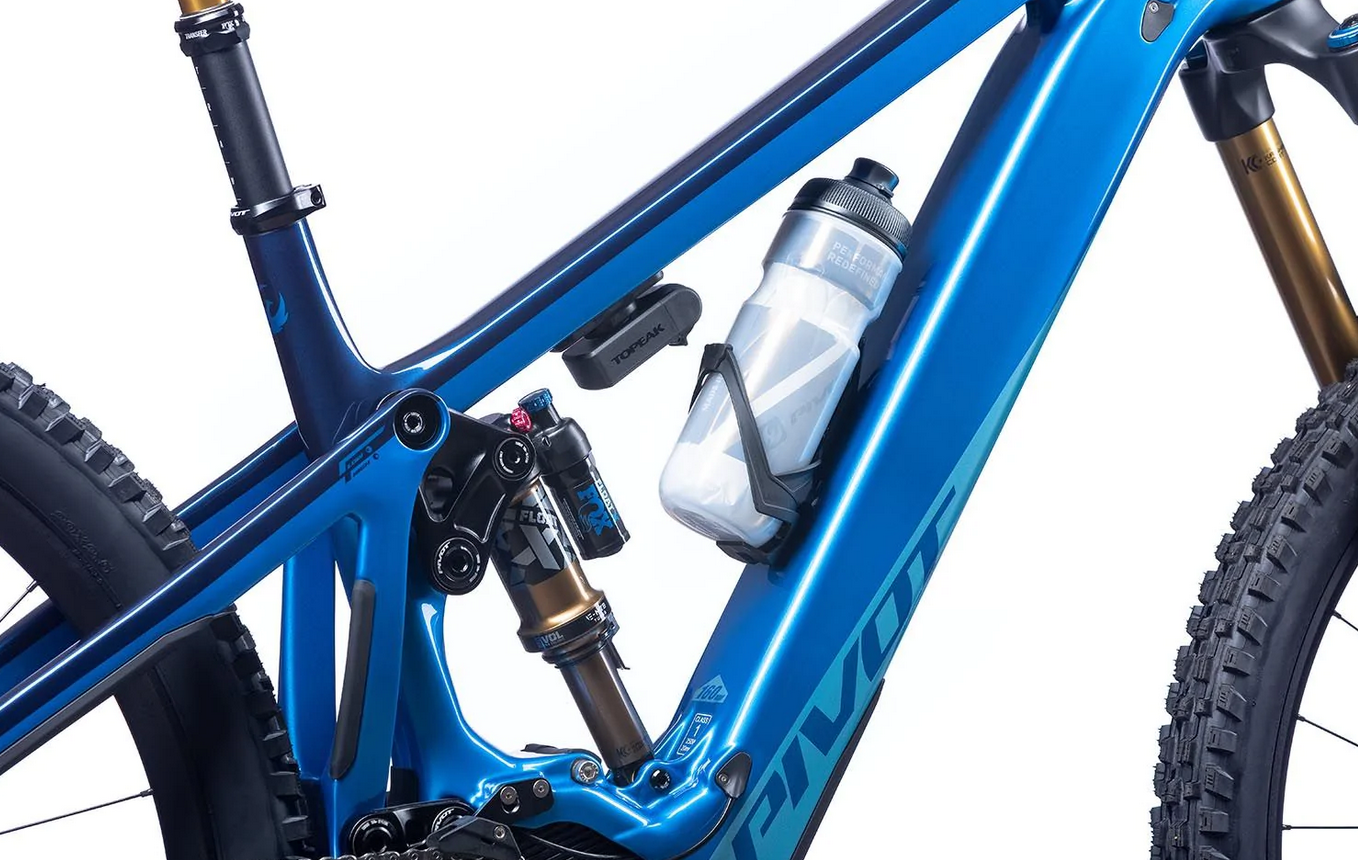

| Rear Shock | Fox Factory Float X |
| Headset | Pivot Precision Sealed Cartridge |
| Shifter | Shimano XTR M9100 ISPEC EV 12spd |
| Rear Derailleur | Shimano XTR M9100 SGS 12spd |
| Cassette | Shimano XT M8100 10-51t |
| Chain | Shimano CN-M8100 12spd |
| Chainring | |
| Crankset | Shimano EM600 E-MTB 34t - 160mm |
| Brakes | Shimano XTR M9120 4-piston |
| Rotors | Galfer Rotor 223mm F | 202MM R |
| Seatpost | Fox Transfer Factory Series: 150mm (SM), 175mm (MD-LG), 200mm (XL) |
| Handlebar | Phoenix Team Low Rise Carbon |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Grips | Phoenix Factory Lock-On |
| Saddle | WTB High Tail Pro (SM) | Phoenix WTB Pro Volt Medium Width (MD) | Pivot Pro E-BIke (LG-XL) |
| Pedals | N/A |
| Front Wheel | DT Swiss Hybrid HX1501, 30mm - 29" - 15x110 F |
| Rear Wheel | DT Swiss Hybrid HX1501, 30mm - 29" - 12x157 R |
| Front Tire | Maxxis Assegai 29x2.5" TR, EXO+, 3C |
| Rear Tire | Maxxis Assegai 29x2.5" TR, EXO+, 3C |

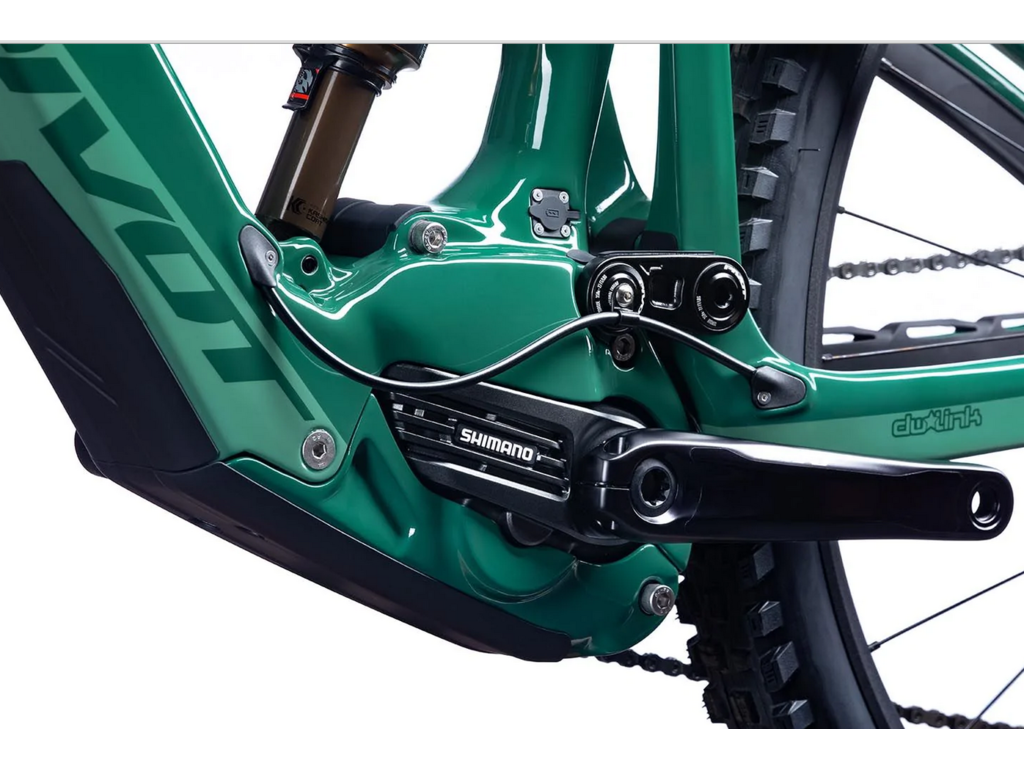

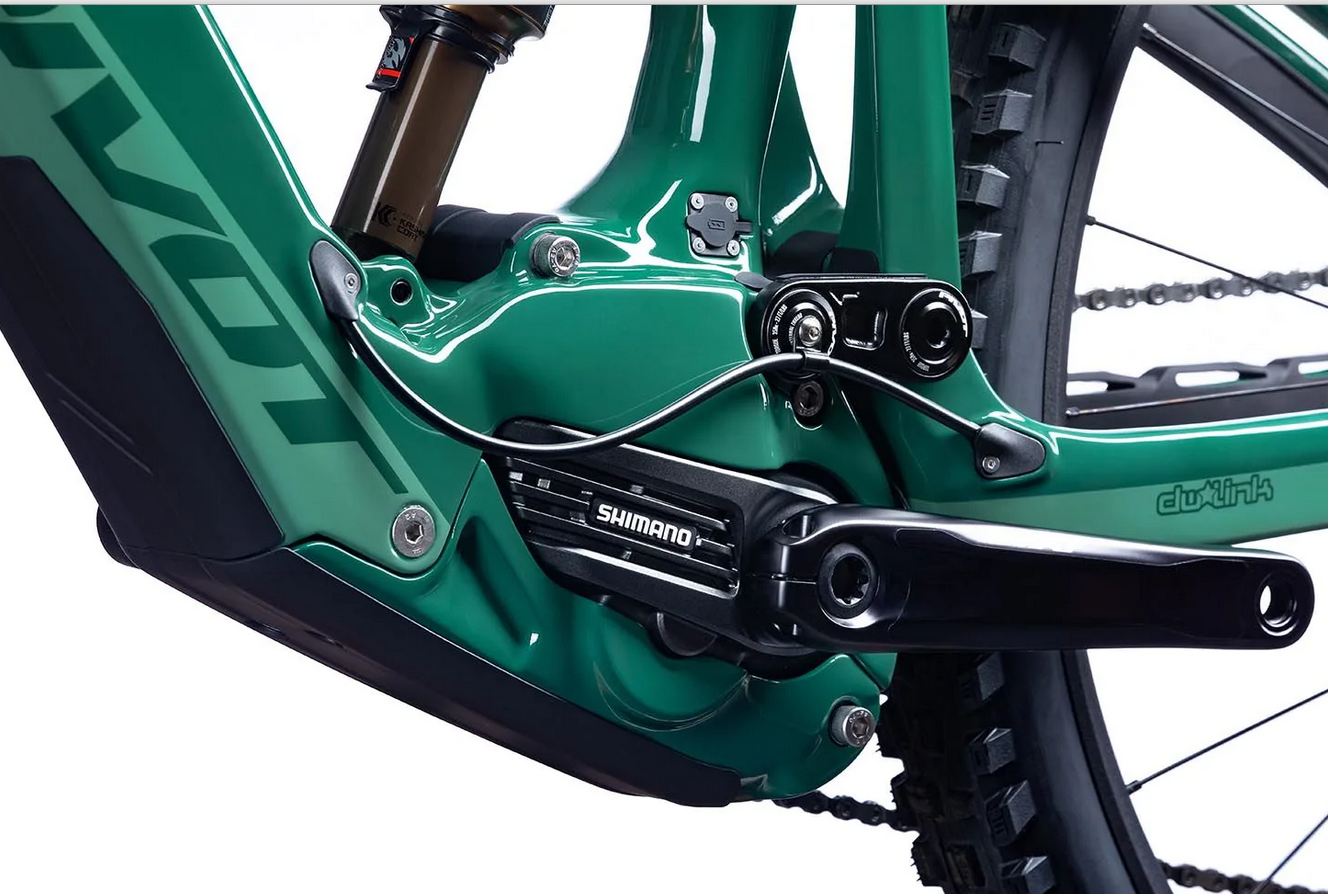

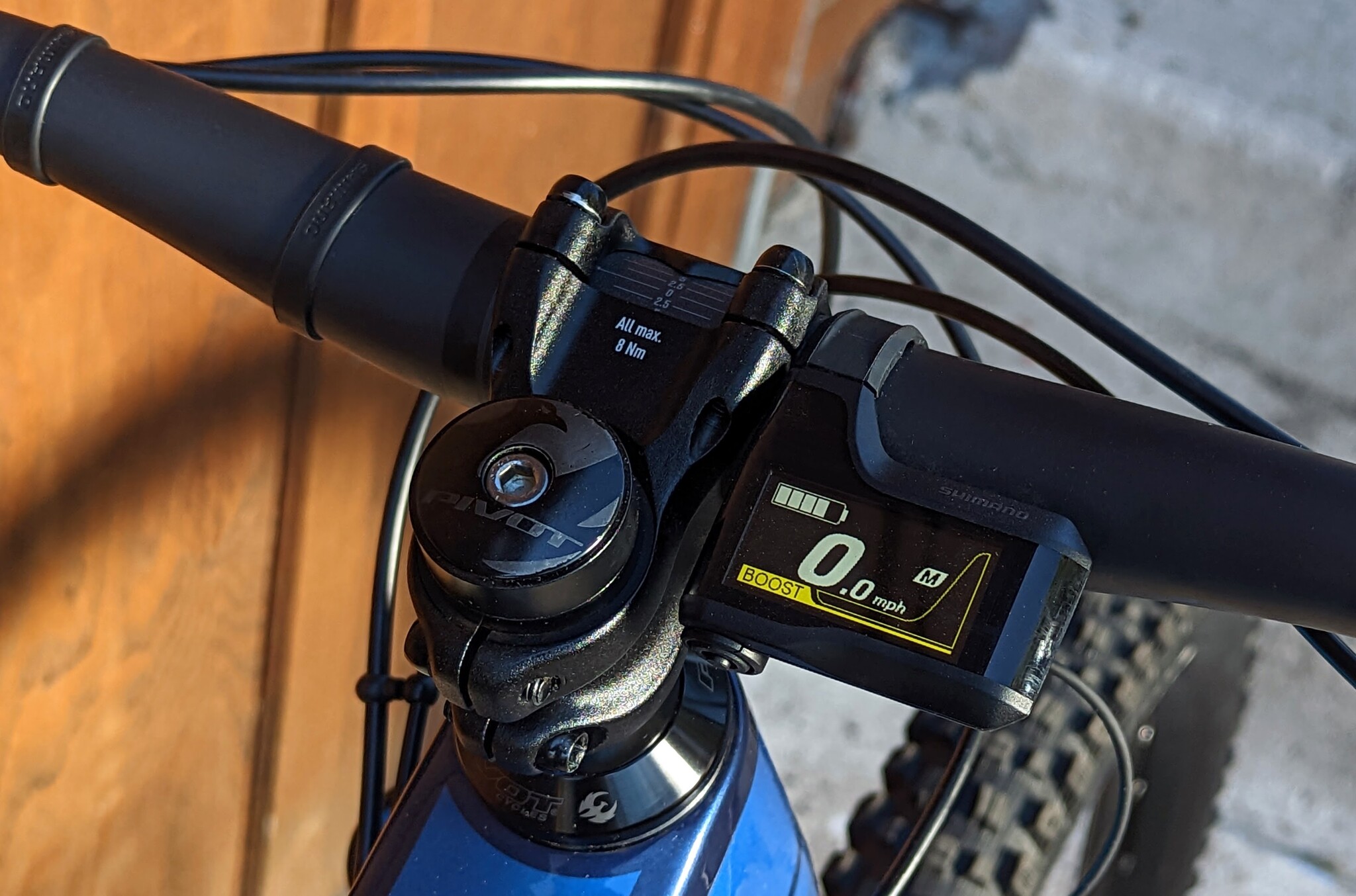

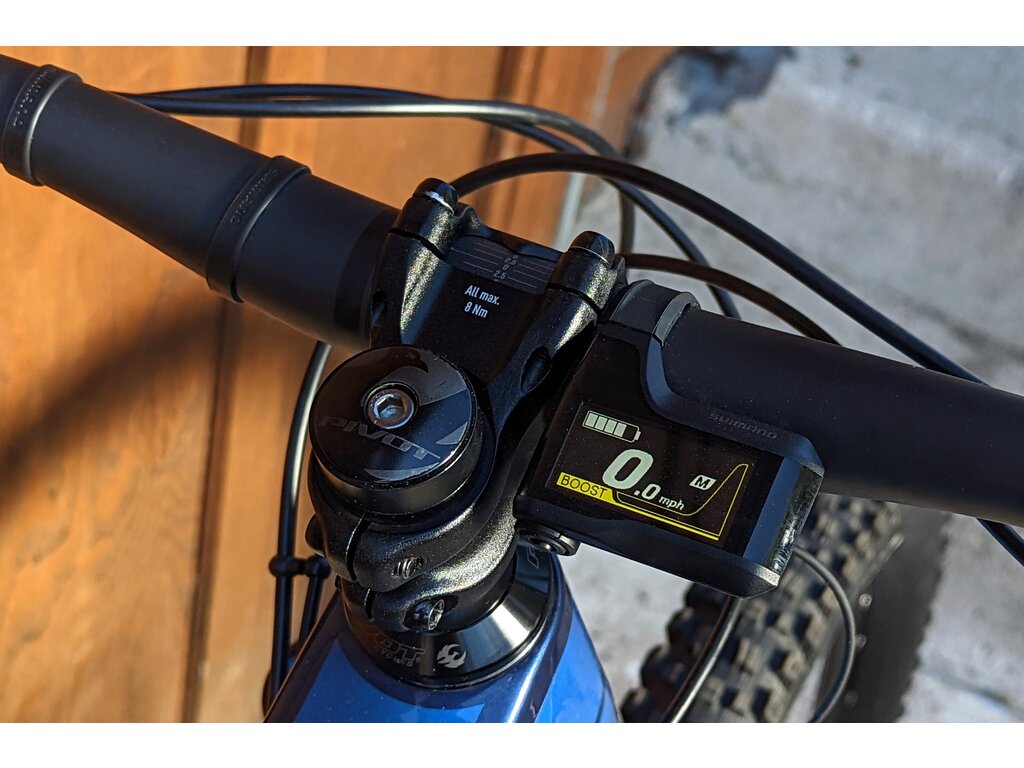

| Drive Unit | Shimano EP8 |
| Battery | 756Wh |
| Display | |
| Extras | N/A |
| Sizes |
FROM THE MANUFACTURER
Too Much is Just Right
Race ready and ultra-refined, the new Shuttle LT is the hyper-capable brainchild of the Pivot engineering team that delivered our EWS-proven Firebird. Pivot's deadly accurate combination of dw-Link suspension and proprietary carbon molding technology come together in a bike that embodies ambition.

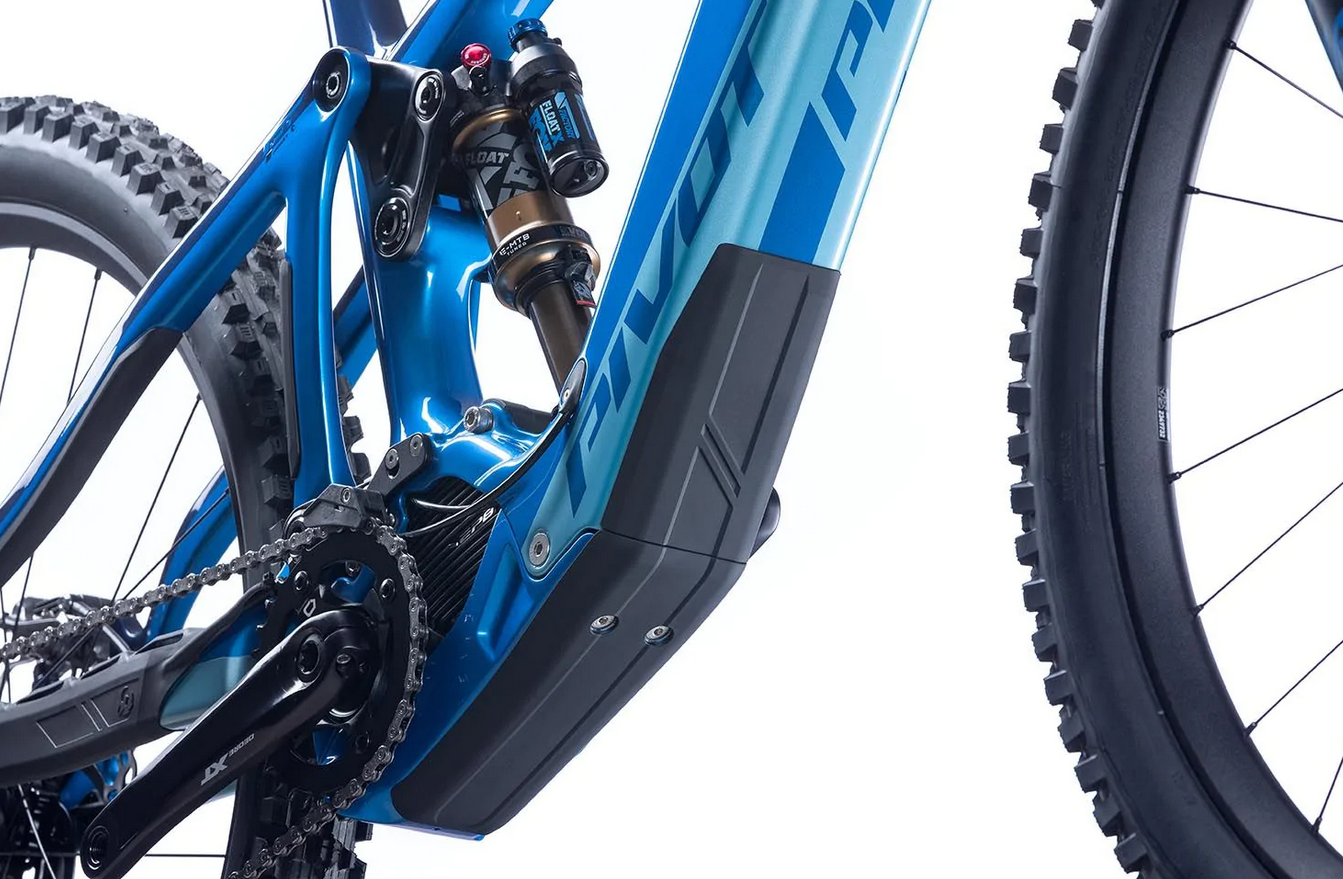

756Wh Powerhouse
The downtube of the Shuttle LT houses an energy dense 756 watt-hour battery. With an origin story that began with Pivot engineers doodling battery cell configurations on a cocktail napkin, this powerhouse was developed for Pivot with Shimano's top battery partner.
"The Shuttle LT isn't exactly an electrified Firebird, but instead feels like a very coherently designed take on a bike that's meant to have similar goals, just in a motorized package. Pivot hasn't just slapped a motor and a battery on the Firebird and called it a day, and the Shuttle LT is better for it."
— BLISTER
FEATURES
- Flip chip geometry customization
- Massive 756Wh battery
- 170mm Fox 38 Fork with custom eMTB tune
- 85Nm of torque
- USB-C charging port
- 223mm Front and 203mm rear rotors
- Clean internal routing with Pivot Cable Port System
GEOMETRY
High BB (Measured in cm)
| SM | MD | LG | XL | |
| Seat Tube Length | 37 | 40 | 43 | 47 |
| Top Tube Length | 60 | 62.3 | 64.5 | 67.2 |
| Head Tube Length | 11 | 12 | 13 | 14 |
| Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat Tube Angle | 77° | 77° | 77.5° | 78° |
| Chainstay | 43.9 | 43.9 | 43.9 | 43.9 |
| BB Height | 35.7 | 35.7 | 35.7 | 35.7 |
| BB Drop | 1.7 | 1.7 | 1.7 | 1.7 |
| Standover | 69.4 | 69.8 | 70 | 70.1 |
| Wheelbase | 122.9 | 124.5 | 128.1 | 130.7 |
| Stack | 63.1 | 64 | 64.9 | 65.8 |
| Reach | 44.9 | 47.1 | 49.1 | 51.4 |
Low BB (Measured in cm)
| SM | MD | LG | XL | |
| Seat Tube Length | 37 | 40 | 43 | 47 |
| Top Tube Length | 60.5 | 63 | 65 | 66.9 |
| Head Tube Length | 11 | 12 | 13 | 14 |
| Head Tube Angle | 64° | 64° | 64° | 64° |
| Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Chainstay | 44.1 | 44.1 | 44.1 | 44.1 |
| BB Height | 35.2 | 35.2 | 35.2 | 35.2 |
| BB Drop | 2.2 | 2.2 | 2.2 | 2.2 |
| Standover | 68.6 | 69 | 69.2 | 69.3 |
| Wheelbase | 123.4 | 125.7 | 128.2 | 130.8 |
| Stack | 63.5 | 64.4 | 65.3 | 66.2 |
| Reach | 44.5 | 46.8 | 48.8 | 51 |
