Create an accountFrame | Ransom Carbon HMX Integrated Suspension Technology 6 Link kinematic / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline / MX Ready |
Wheel Size | 29" |
Travel | 170mm Front | 170mm Rear |
Fork | FOX 38 Float Factory Grip 2 Air / Kashima HSC - LSC - HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 170mm travel |
Rear Shock | FOX FLOAT X NUDE Factory EVOL Piggy Back Trunnion Kashima / SCOTT custom w. travel / geo adj. 3 modes: Climb-Ramp Control-Descend Custom large Air volume / Comp & Reb. Adj. Travel 170-130-Climb / T205X65mm / Bearing Hardware |
Headset | Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
Bottom Bracket | SRAM DUB PF 92 MTB Wide / shell 41x92mm |
Shifter | SRAM AXS Rocker Controller |

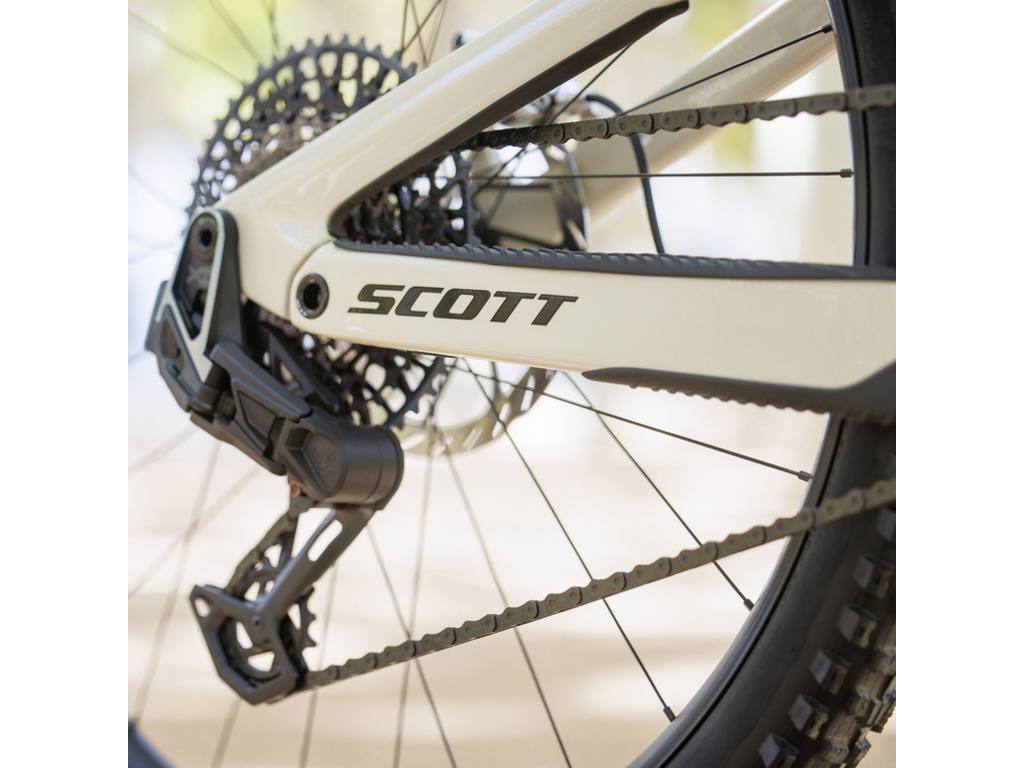

Rear Derailleur | SRAM X0 Eagle AXS Transmission 12 Speed Wireless Electronic Shift System |
Cassette | SRAM X0 Eagle XS 1295 Transmission 10-52 |
Chain | SRAM CN X0 Eagle Transmission |
Chainring | |
Crankset | SRAM X0 Eagle Transmission Bash guard / DUB / 55mm CL / 32T |
Brakes | SRAM Code Ultimate Stealth 4 Piston Disc |
Rotors | SRAM HS2 Rotors F&R 200mm |
Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm |

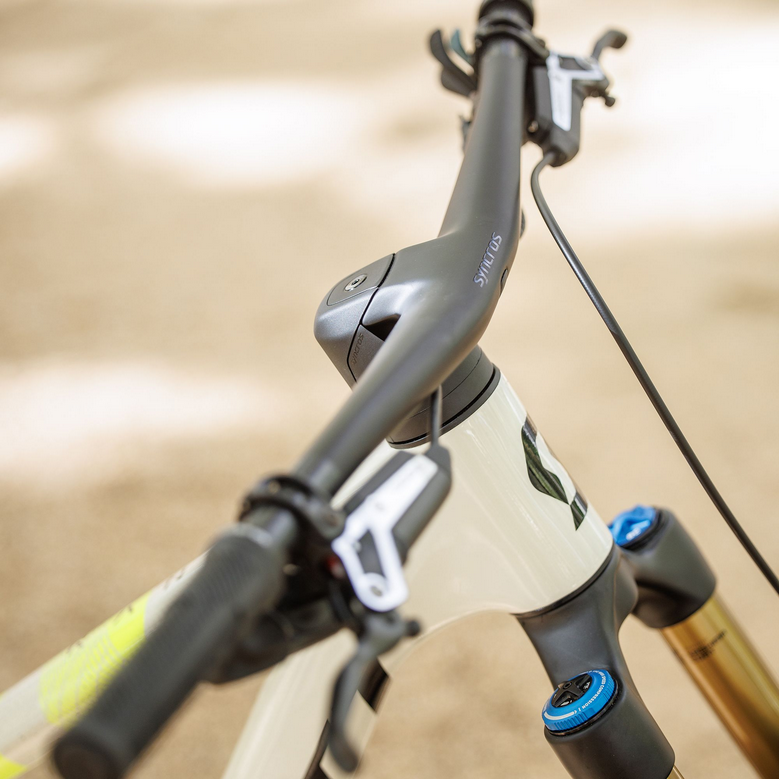

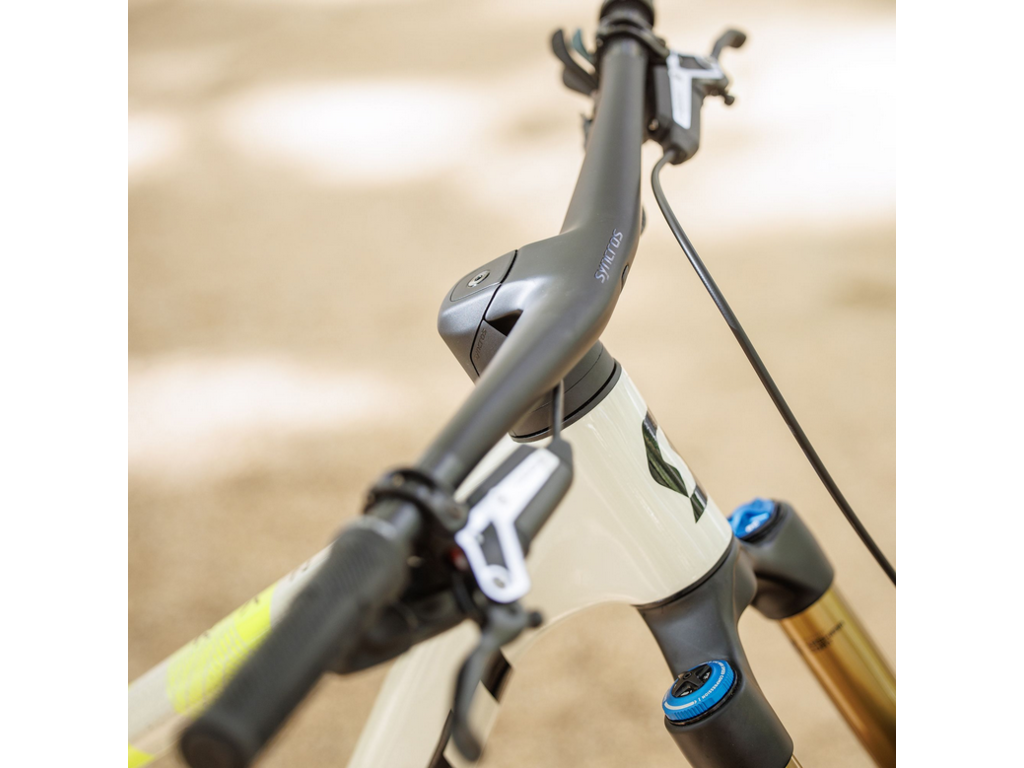

Handlebar | Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm / 40mm Syncros Endurance lock-on grips |
Stem | |
Grips | |
Saddle | Syncros Tofino 1.5 Titanium Rails |
Pedals | N/A |
Front Wheel | Race Face Turbine R 30 / 110x15 / 148x12 rear / 29" / 28H / Tubeless Ready Rims / XD driver Syncros Axle w/Removable Lever with Tool |
Rear Wheel | Race Face Turbine R 30 / 110x15 / 148x12 rear / 29" / 28H / Tubeless Ready Rims / XD driver Syncros Axle w/Removable Lever with Tool |
Front Tire | Maxxis Assegai / 2.5" / 60TPI Foldable / EXO+ / TR / 3C Maxx Gripp |
Rear Tire | Maxxis Dissector / 2.4" / 120TPI Foldable / DD/ TR / 3C Maxx Terra |
Sizes |
FROM THE MANUFACTURER
Introducing the all-new SCOTT Ransom. Our latest version of Ransom was uncompromisingly engineered for maximum downhill performance and an all-time confidence inspiring ride. Killer geometry paired with a supernatural suspension kinematic result in a bike that doesn’t take “no” for an answer. Don’t hold yourself hostage, ride Ransom.
FEATURES
Suspension |
Integrated Suspension Technology Nude Suspension
|
|
Frame |
Internal Storage Frame Construction Geometry
|
|
Construction | Versatility With versatility being the key for todays' riders, adaptability is an integral part of the bike's DNA to ensure the ride experience can be tailored to personal preferences or different racetrack conditions. This includes adjustable head angle, wheel size compatibility (mullet) and advanced shock compatibility. |
GEOMETRY
Small | Medium | Large | X-Large | |
Head Tube Angle | 63.8° | 63.8° | 63.8° | 63.8° |
Head Tube Length | 95 | 100 | 115 | 125 |
Top Tube Horizontal | 569.9 | 598.7 | 624.4 | 649.1 |
Standover Height | 719.2 | 725.4 | 736.7 | 755.3 |
BB Offset | -25 | -25 | -25 | -25 |
BB Height | 350 | 350 | 350 | 350 |
Wheelbase | 1206.6 | 1238.8 | 1270.4 | 1299.8 |
BB Center to Top of Seattube | 380 | 410 | 440 | 470 |
Seat Angle | 77° | 77.2° | 77.4° | 77.6° |
Chainstay | 440 | 440 | 440 | 440 |
Reach | 428 | 458 | 483 | 508 |
Stack | 614.8 | 619.3 | 632.8 | 641.7 |
Stem Length | 40 | 40 | 40 | 40 |
Trail | 135.5 | 135.5 | 135.5 | 135.5 |
Fork Length | 581 | 581 | 581 | 581 |
Max Seatpost Insertion | 184.5 | 214.6 | 244.7 | 274.6 |
Crank Length | 165 | 170 | 170 | 170 |
