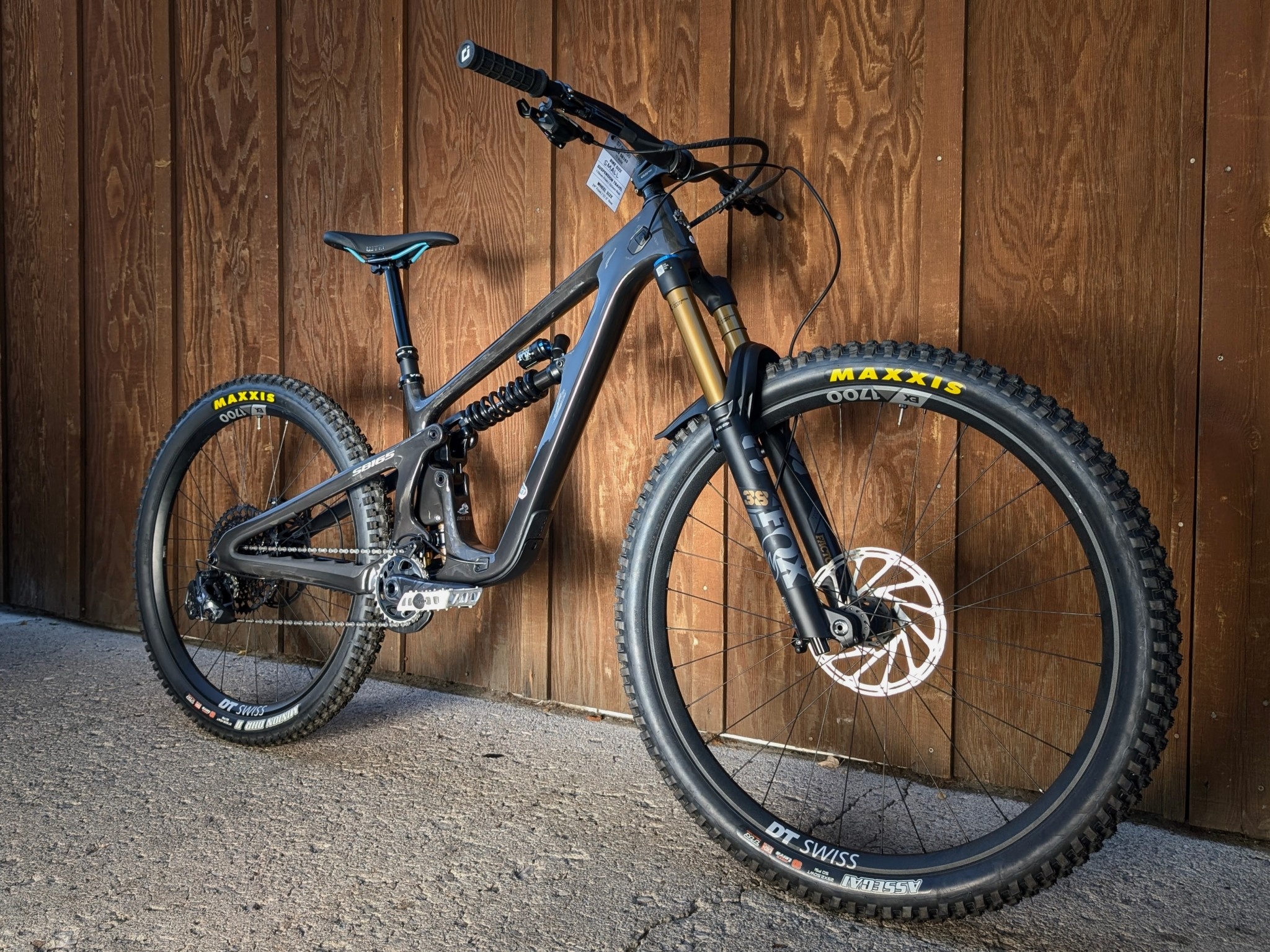

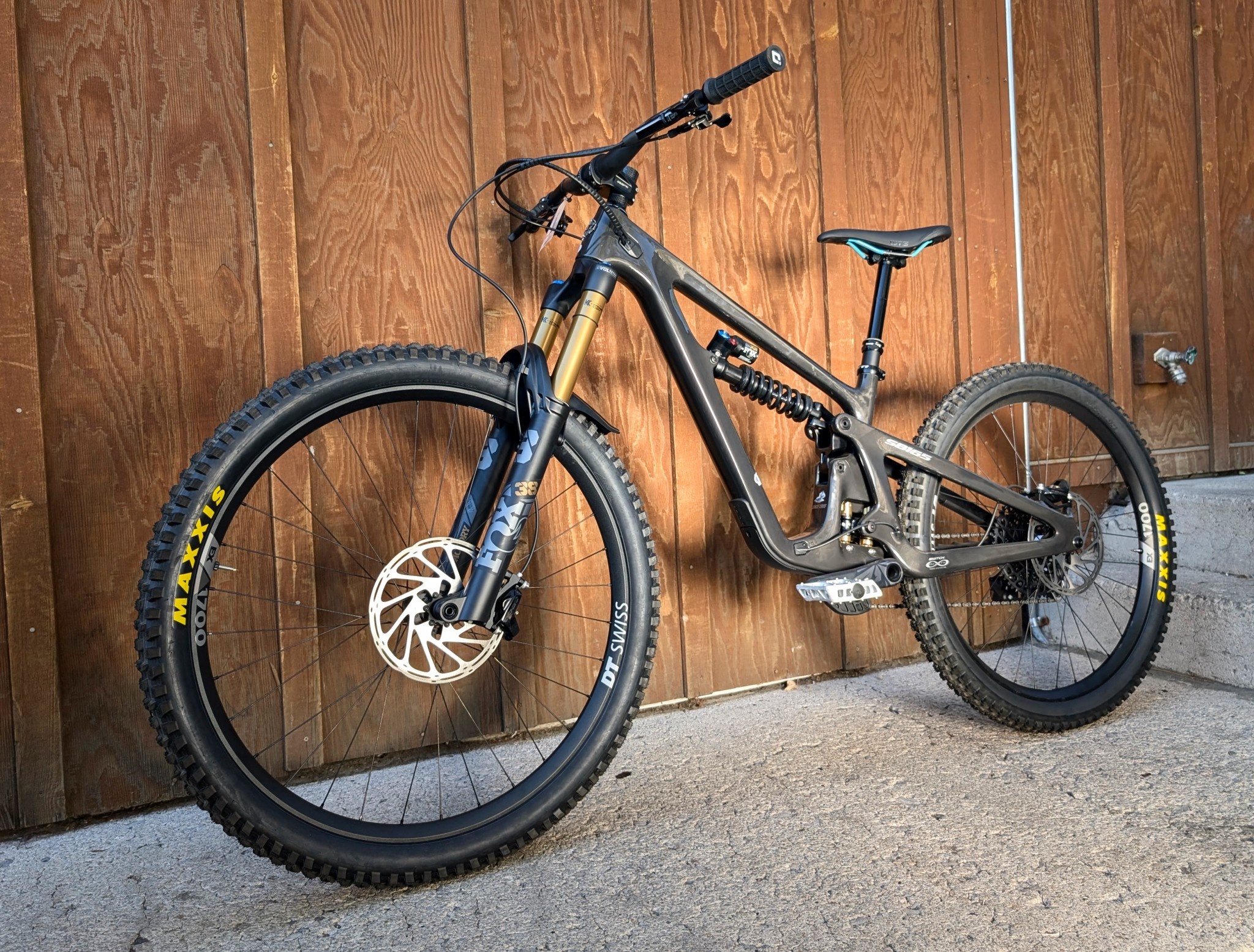

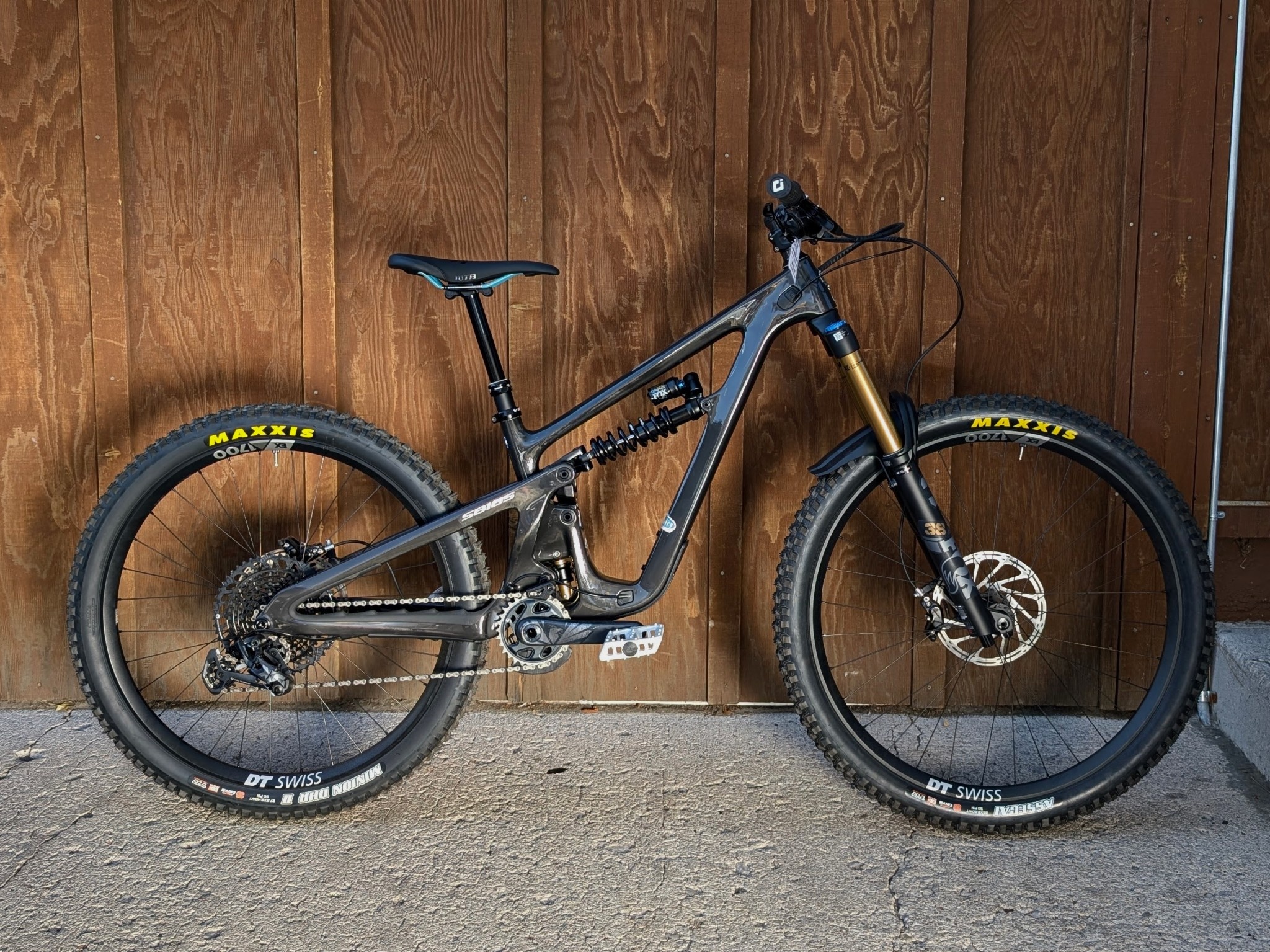

2024 Yeti SB165 T2 29"/27.5" - Small

Switch Infinity. Recalculated.
Discover the next-generation of translating-pivot suspension designs. Setting new expectations for kinematics, longevity, sensitivity, and strength.

Custom Coil Kinematics.
Progressive suspension kinematics tuned specifically for a coil shock give incredible small bump sensitivity and proper bottom out support. Team input and race intelligence leveraged for a shock tune that maximizes Switch Infinity and remains active, lively, and ready for the inevitable “oh shit” hits.

Leverage Rate — 22%
Still the most progressive rate in our lineup, with a refined curve for mid-stroke composure when slashing turns, loading the bike for more versatility on more terrain.

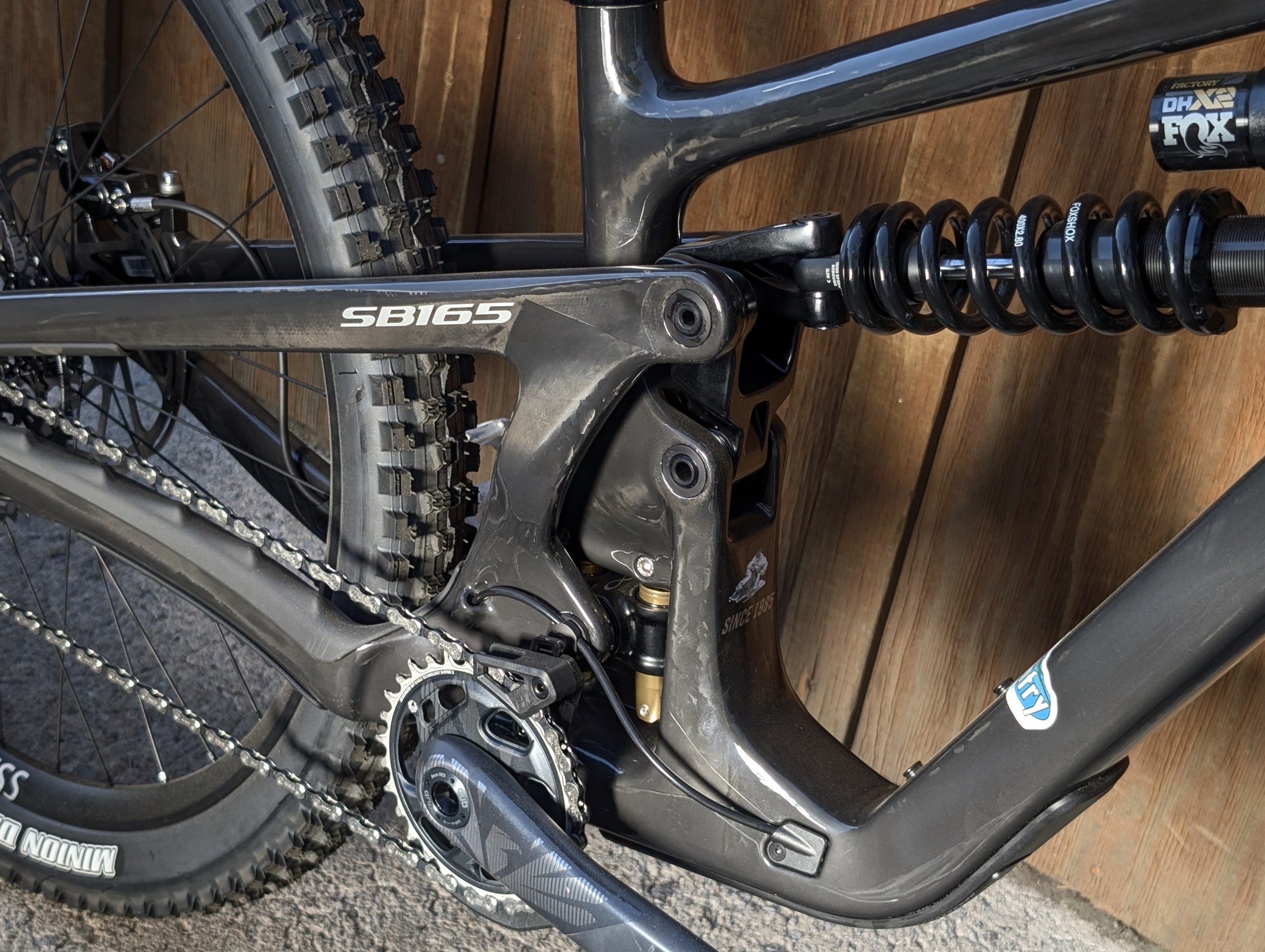

Patented Wishbone.
Patented, two-piece shock wishbone optimizes leverage rate while moving the shock forward in the frame. This positioning allows for a greater range of shock compatibility, decreases stand-over height, reduces shock tab sizes, increases water bottle compatibility, and boosts downtube clearance. Also makes shock removal quick and easy.

Hello New School.
A refined main frame and swingarm silhouette that does more than just look sweet. It packages Switch Infinity and its linkage in a tighter, more efficient space, for added impact and ground clearance, along with increased holistic chassis stiffness.

Consistency, No Matter The Size.
To give each size of the SB165 the same torsional stiffness, each frame has its own carbon layup. This is extra important for the SB165, due to the kind of aggressive riding it will encounter. We simply can’t afford to let flex affect suspension components with binding, premature wear, or small bump sensitivity reduction. And it’s vital to give every rider the same frame feel, regardless of frame size.

Speed Metal.
What good are proprietary bearings (AKA “impossible to find”) when it comes time to replace? Our designs use standard-sized bearings secured with precision-machined floating collet axles. Replacement is also made easier with all bearings pressed into the linkage assembly itself instead of the swingarm or front triangle.

Cable Management.
Internally routed cable tubes with secure closures at entry and exit points eliminate rattles and rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitive, easy, and quiet.

Compact Switch Case.
We minimized the frame structure surrounding Switch Infinity to boost frame stiffness, reduce weight, increase ground clearance, and leave more room for hydration.

Threaded BB.
Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now more durable, cleaner, and easier to service.

• 2.6" Tire clearance with room to spare
• 25mm more downtube clearance
• Low slung top tube for extreme maneuverability
• Floating collet pivot axles enhance frame stiffness and bearing life
