| Frame | Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro |
| Wheel Size | 29" |
| Travel | 150mm Front | 130mm Rear |
| Fork | Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Rear Shock | Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing |
| Bottom Bracket | Sram DUB BSA wide, sealed bearings, 73mm |
| Shifter | Sram Eagle AXS Pod, 12s |
| Rear Derailleur | Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s |
| Cassette | Sram XS-1275, 10-52T, T-Type, 12s |
| Chain | Sram GX T-TYPE, 12s, Powerlock |
| Chainring | |
| Crankset | Sram GX Eagle T-Type, Boost, DUB axle, Direct mount chain ring, S size: 170mm M size: 170mm L size: 175mm XL size: 175mm, CL55 |
| Brakes | Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rotors | 180mm Front / 180mm Rear |
| Seatpost | ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm |
| Handlebar | ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Stem | ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Grips | ONOFF Desert, 1lock-on, 135mm |
| Saddle | Fizik Antares R7 |
| Pedals | N/A |
| Front Wheel | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Rear Wheel | Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes |
| Front Tire | Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead |
| Rear Tire | Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead |
| Sizes | SM, MD, LG, XL |
FROM THE MANUFACTURER
The Raze Carbon R is the ideal bike if you want an aggressive trail bike which also pedals really, really well.
The RAZE CARBON R is the ideal bike if you want an aggressive trail bike which also pedals really really well. This model includes the new Sram GX T-TYPE. Its standout climbing characteristics mean that the only limit to your climbs will be your legs. Its effectiveness going up is unquestionable but best of all is that when you point it downwards it’s an amazing tool for the job. Its shock absorption, lightness and rigidity make it the best all-purpose bike bar none. Our exclusive STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM and FORWARD GEOMETRY technologies are of course also present in the CARBON R.
GEOMETRY
| Small | Medium | Large | X-Large | |
| Seat Tube Length | 375 | 415 | 445 | 500 |
| Top Tube Length | 595 | 620 | 645 | 670 |
| BB Drop | -30 | -30 | -30 | -30 |
| BB Height | 343 | 343 | 343 | 343 |
| Chainstay | 435 | 435 | 435 | 435 |
| Seat Tube Angle | 71° | 71° | 71° | 71° |
| Eff. Seat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| Headtube Angle | 65.5° | 65.5° | 65.5° | 65.5° |
| Fork Offset | 44 | 44 | 44 | 44 |
| Wheelbase | 1193 | 1217 | 1243 | 1269 |
| Headtube Length | 90 | 100 | 115 | 130 |
| Reach | 455 | 475 | 495 | 515 |
| Stack | 608 | 617 | 631 | 645 |
Add your review

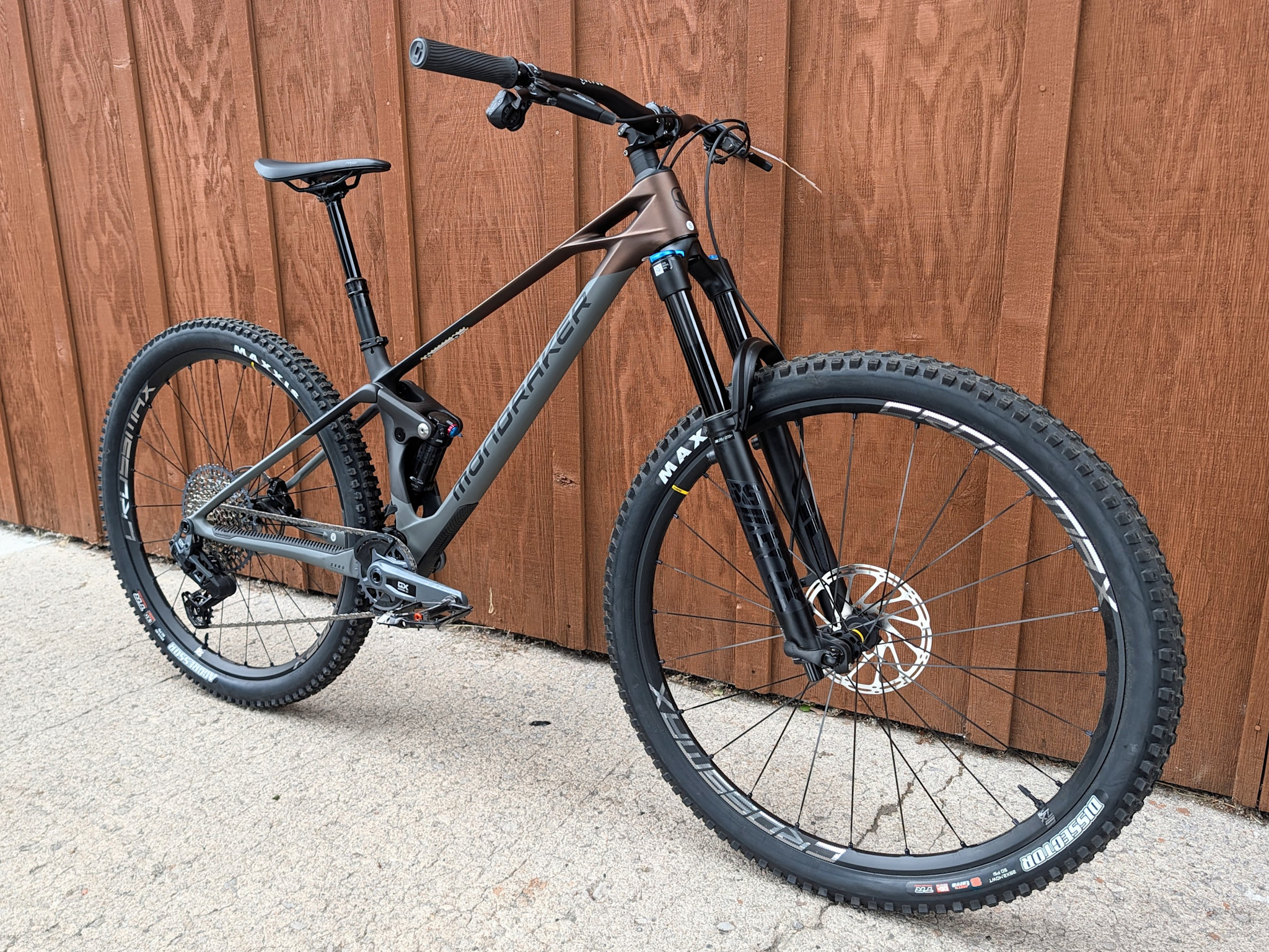

Review 2025 Mondraker Raze Carbon R AXS 29"
