SRAM G2 R Disc Brake & Lever - Rear 2000mm Hose A2 Post Mount

$146.00
Available in store: Check availability

Available in store

Close
Direct Link | Reach Adjust | 4 Piston
Delivery time: 5-7 Business Days
FROM THE MANUFACTURER



The core of brake performance is consistency. Reliability. Trust. And with G2 R, SRAM focused on offering a premium value without compromising the heart of the operation. This brake gives riders the G2s famed “Mini-Code” power and a whole suite of SRAM standard features at an absolutely unbeatable value.



FEATURES



  • Power organic pads give riders both feel and bite.
  • Engineered for easy installation and maintenance.
  • Tools-free reach adjust for quick personalization.

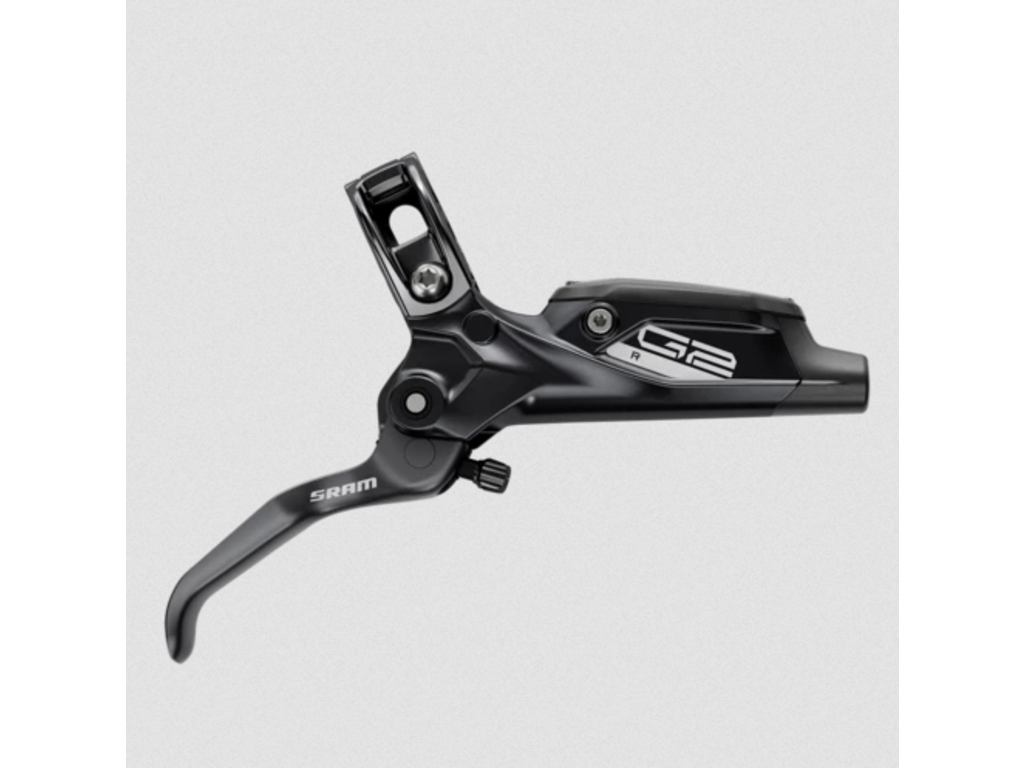

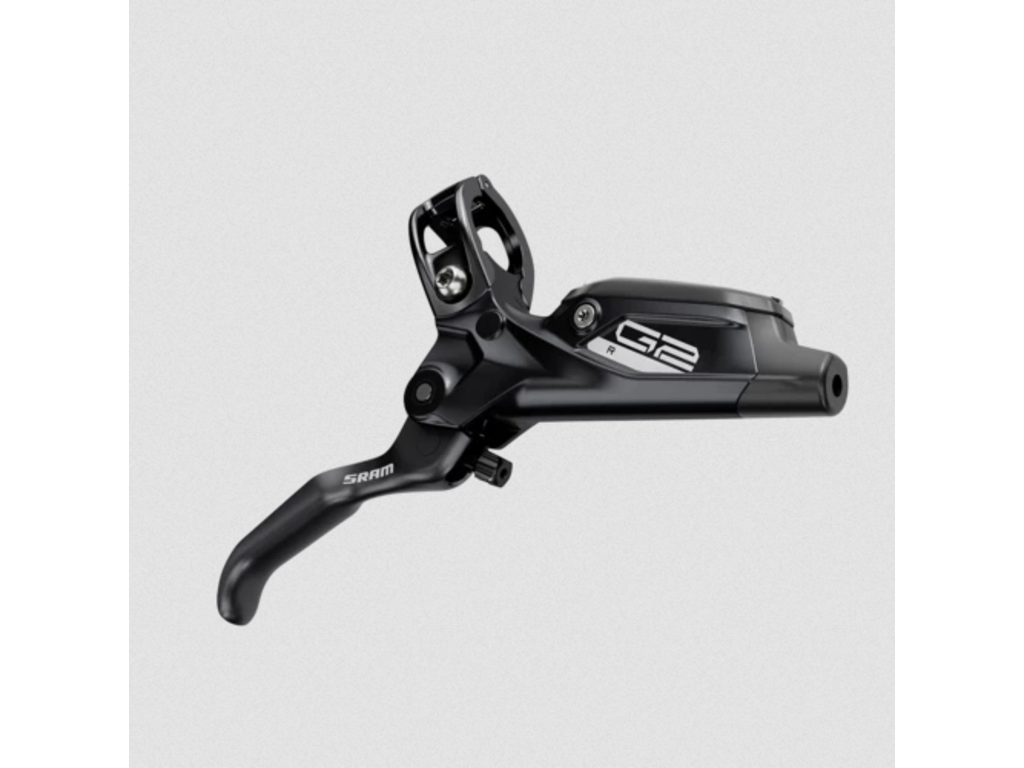

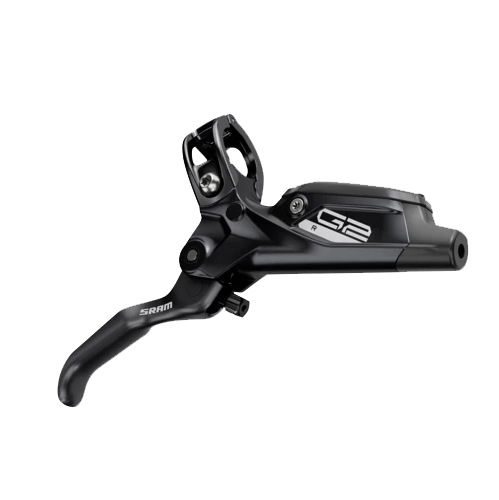

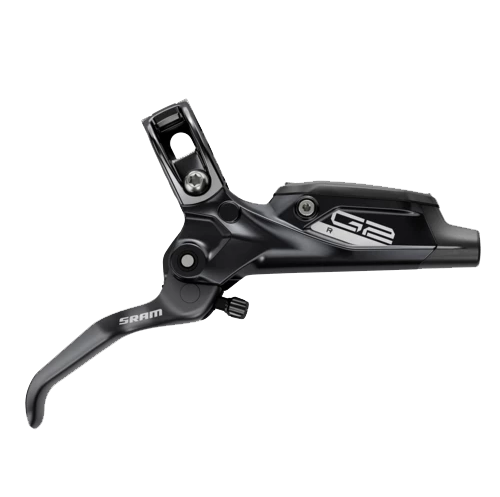

Direct Link

SRAM's DirectLink level deisgn produces a solid, positive feel the second you squeeze the lever to engage the brake. It offers a no-nonsense solution to give you precise control.



Reach Adjust


Brake lever fit and feel is a personal thing. Riders have individual positioning preferences, as well as unique hand sizes and finger lengths. Reach Adjust your lever for maximum one-finger control for everyone.



Geometry


Power Reserve Geometry
Your fingers pull in a straight line, but brake levers move in an arc. Bottom line: Your fingers typically want to slip off the ends of the levers as you pull. We designed all of our brakes with the industry's lowest X Factor (that's the distance from the center of the handlebar to the center of the lever's pivot). That reduces the lever's inward travel, creating an arc that's closer to your fingers' natural motion and more power is delivered to the brake lever. And, the cool part is, every SRAM and Avid brake lever has it.



Timing Port Closure

A hydraulic brake's timing port is the connection between the reservoir and the lever cylinder bore. When the lever is squeezed, a cup seal passes this area and closes the port, which pressurizes the system. SRAM's timing port closure system features durable seals and an ultra-smooth cylinder bore finish producing dependable braking power and consistency.



Caliper

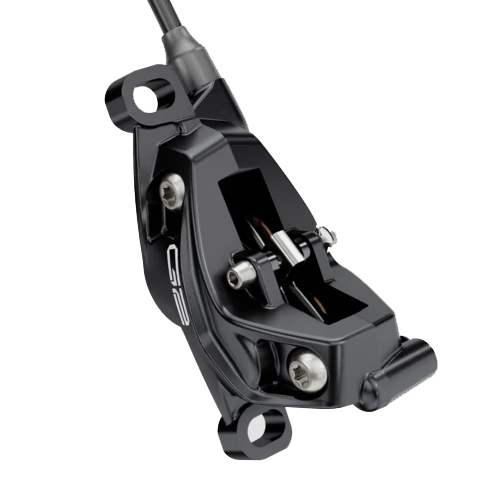

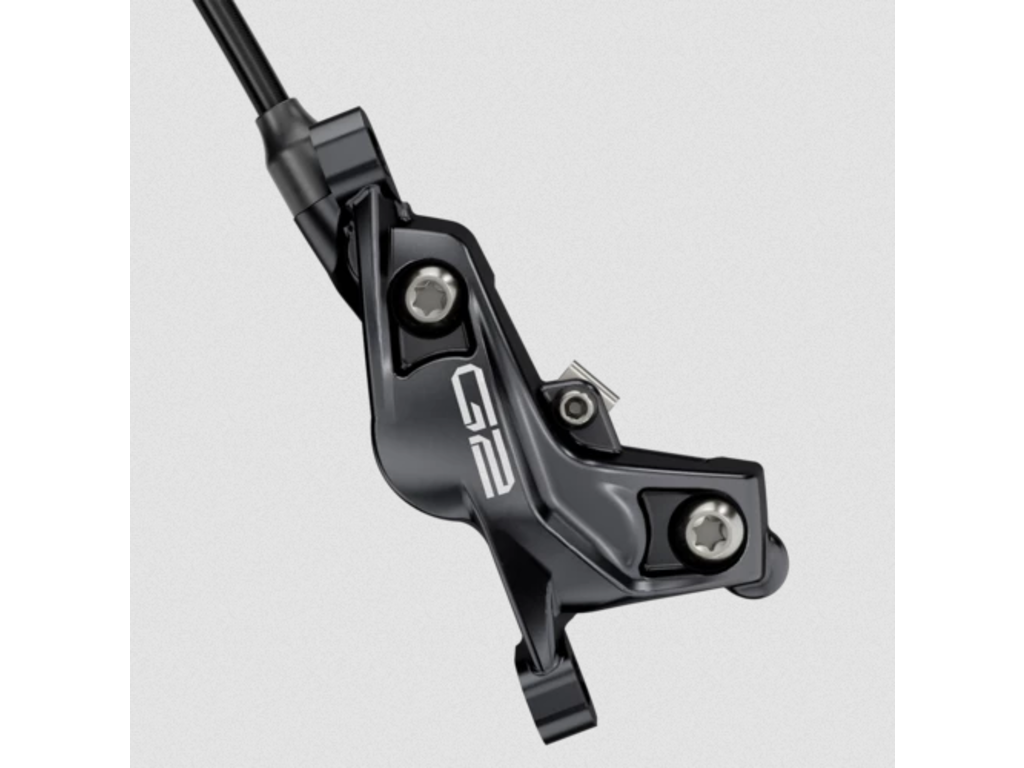

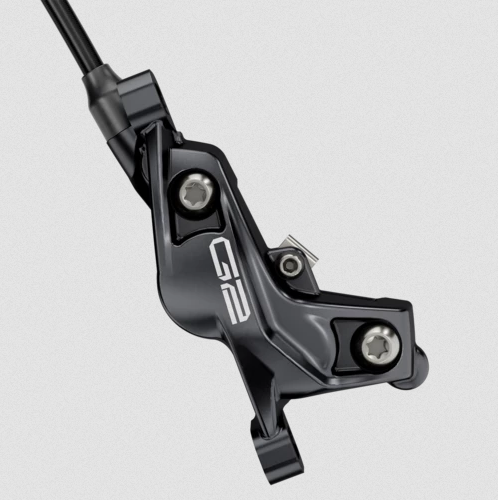

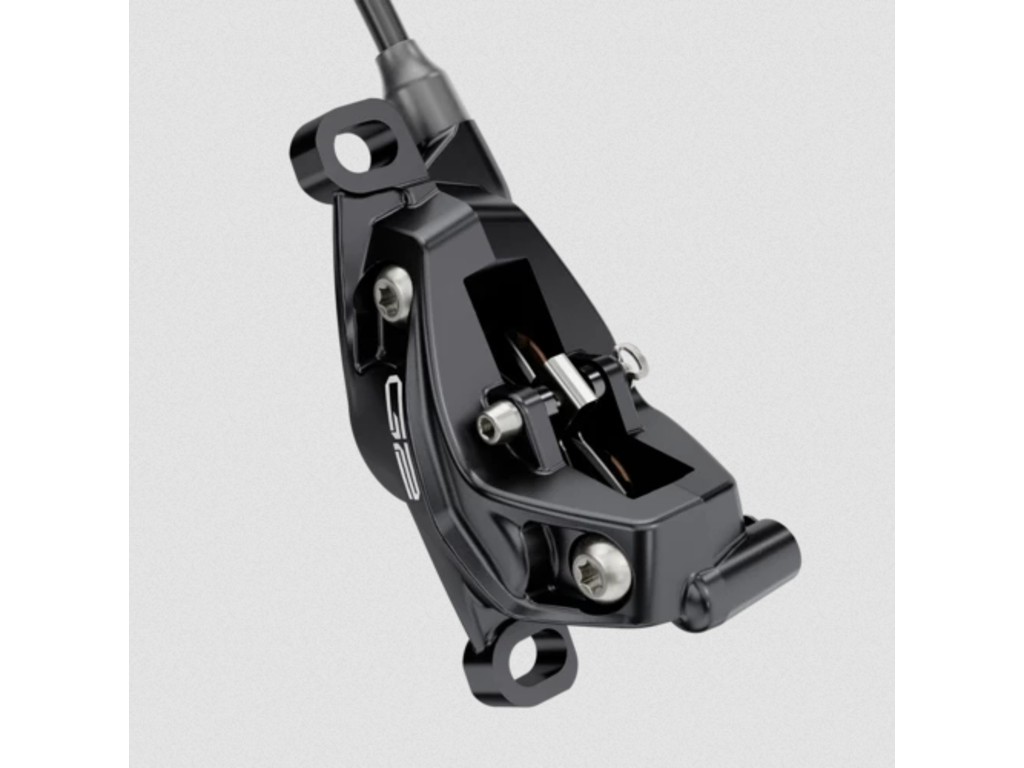

  S4 Light-Weight 4-Piston Caliper
The all new S4 Caliper features four Machined and Moly-coated aluminum pistons for consistent rollback and easy set-up, Heat shield insulation and Bleeding Edge porting and adapter technology for easy bleeds.

SPECIFICATIONS



Model ID DB-G2-R-A2
Application (DB) MTB
Brake type Hydraulic
Color (DB) Diffusion Black Anodized
Blade material Aluminum - Stamped
Rec MMX clamp (not included) Stl(glossblk)bolt,blk clp
Orientation Front, Rear
Pad type (Disc) Steel-backed organic
Bracket (Disc Brake) Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS,
Intl Std(160mm Rear,180mm Frt rotor) 20I,
Intl Std(180mm Rear,200mm Frt rotor) 40I,
Intl Std(200mm Rear rotor) 60I,
Post mount (20mm bracket) 20P,
Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
