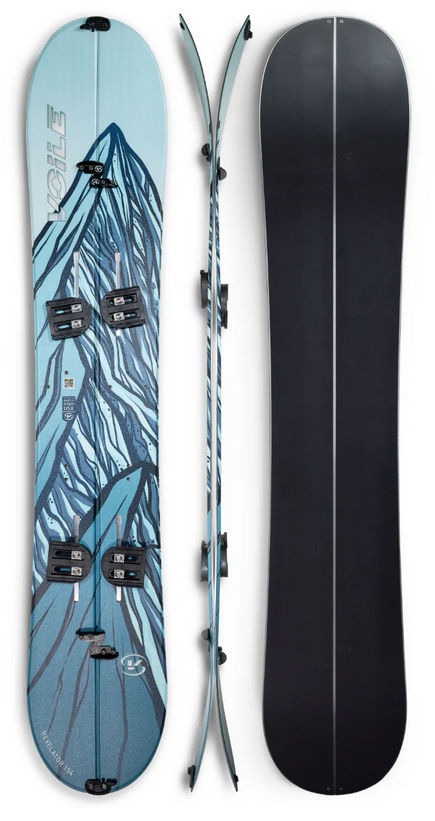

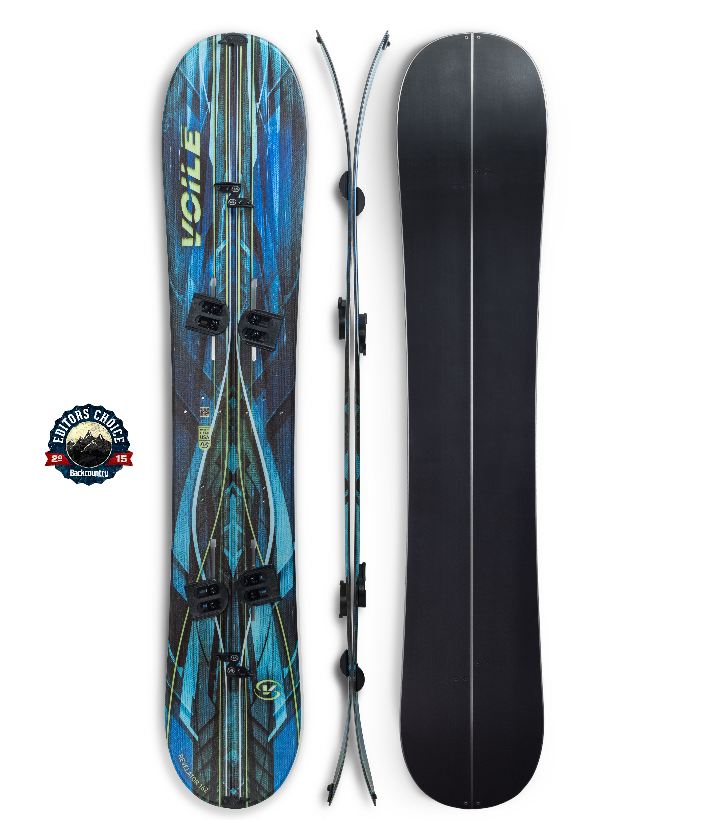

Voile Revelator Splitboard

$695.00 $486.50
Available in store: Check availability

Available in store

Close
Directional | Hybrid Camber | All-Mountain
Delivery time: 5-7 Business Days
Best Use All Mountain
Profile Hybrid Camber
Shape Directional
Flex N/A
Core Material Paulownia Wood
Base material Sintered Base
Tip & Tail clips Voile
Split Hooks Voile
Binding Mounting System Channel
Skin Attachment Tip Loop or Hooks | Tail Loop or Hooks
What's Included Pucks

** ATTENTION: mounting quiver killers on your Voile Spartan Splitboard will void the Voile factory warranty.



FROM THE MANUFACTURER



For riders that are looking to up their game from Voile's basic boards, comes the Revelator, the ultimate board for demanding riders.
The combination of board’s light weight, shape, profile, flex and camber helps make long uptracks a done deal and downhill rides a dream come true. And when it’s time for the latter, nothing beats our patented system of “Voilé Hooks & Clips” for easy assembly of Revelator’s halves into a single downhill plank.
Thanks to our signature “Voilé Channel Puck System,” adjusting stance width and toe angles is a snap. Using the Voilé Alignment Guide, the screws are loosened and the pucks can then be relocated in virtually any position quickly and without fuss. Many riders will also appreciate how easy the Revelator’s 2.5-degree canted pucks are on their knees.
The Revelator’s Paulownia wood core reduces the overall weight of the board without compromising strength and performance. Carbon fiberglass layers and a longish camber area make for very efficient skinning on the way up and increased stability on the way down. And of course, the board’s large, early-rise nose and tapered tail make deep powder riding seem virtually effortless.

The Revelator. It’s all business in the backcountry, except for huge intervals of fun.



FEATURES



Topsheet


Anti-ice Topsheet
Exceptionally durable polyamide, with an irregular texture that slows the accumulation of snow and allows easy removal of snow and ice build up when the approach is long and/or conditions are freezing.



Laminates


Voile Carbon Weave
Two layers of their proprietary carbon fiberglass regulate the ski's flex without an impact on the bonding strength.



Core


Laminated Paulownia Wood Core
The lightest wood core offered in the line, with an impressive strength to weight ratio. Paulownia provides the ideal foundation for building a lightweight touring ski.



Edges


Full-Perimeter Steel Edge
Two lengths of 2mm steel with the inset teeth wrap the full parameter of the ski. Each section meets at the outermost points of the tip and tail, and is painstakingly hand-bent to ensure a precise layup.



Sintered Base


This ski passes on the base graphics for the sake of an ultra-high molecular density base; making for faster downhill performance and greater wear/ impact resistance.

Many claim that a black base increases a ski's maximum speed. Something about "snow melting faster," which apparently has the effect of "increasing lubrication." Sounds pretty nice right? Of course, we don't really know if it's true... Regardless, you can rest assured that your p-tex repairs will be seamless after your day spent breaking the sound barrier.



TECH SPECS



Length (cm) 154 159 162 165 169
Effective Edge 98.7 103.7 106.7 109.7 112.7
Sidecut (meter) 8.4 8.8 9 9.2 9.4
Waist width 24.8 25.7 26.1 26.3 26.5
Nose Width 29.2 29.8 30.2 30.5 30.8
Tail Width 28 28.6 29 29.2 29.4
Nose Height 6.1 6.3 6.4 6.5 6.8
Tail Height 4.3 4.5 4.5 4.5 4.5
Nose Length 31.2 31.8 31.8 32.1 32.1
Tail Length 28.2 28.8 28.8 29 29
Stance -3 -3 -3 -3 -3
Stance Width (max in) 23.5 25.5 25.75 26 26
Board Weight (kg/​lbs) 5lbs 14oz /​ 2.68kg 6lbs 6oz /​ 2.89kg 6lbs 8oz /​ 2.95kg 6lbs 11oz /​ 3.03kg 6lbs 14oz /​ 3.13kg
Suggested Rider Weight Range (lbs-kg) 100-180
45-82
130-200
59-91
130-210
59-95
150+
68+
150+
68+
